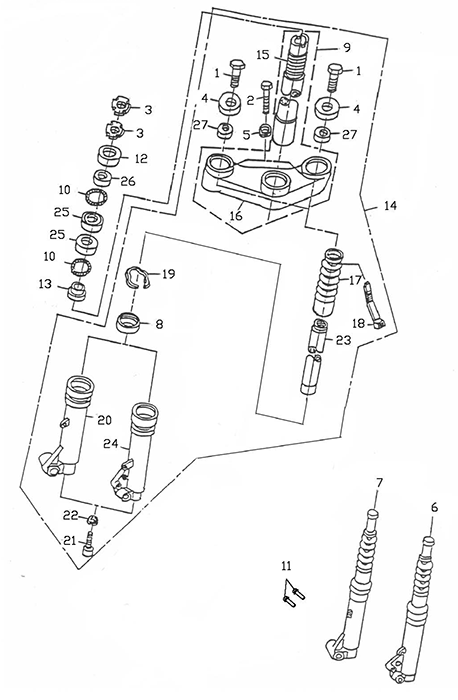

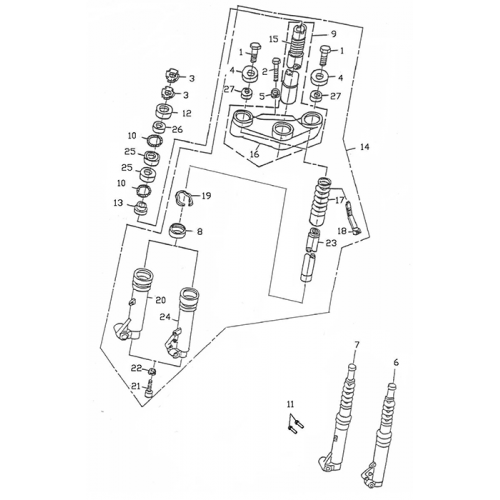

Front Fork (ADLY GTC-50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Hex Bolt, 10*22
92000-10022-17
|
|||
| 2 |
Hex Bolt, 10*36
92000-10036-14
|
$2.43 $1.82 | ||
| 3 |
Spaner Nut, 25mm
94071-25000B
|
$4.83 $3.62 | ||
| 4 |
Plain Washer, 10*32*2
94101-1032020
|
$0.84 $0.63 | ||
| 5 |
Spring Washer, 10*17*2.5
94111-1017025
|
$0.42 $0.31 | ||
| 6 |
Left Tube Ass'Y
53130-361-000
|
$67.73 $50.79 | ||
| 7 |
Right Tube Ass'Y
53030-361-000
|
|||
| 8 |
Oil Seal, 26*37*10.5
96500-2637105
|
$5.13 $3.84 | ||
| 9 |
Steering Stem With Bracket Ass'Y
51109-118-000
|
|||
| 10 |
Steel Ball
96211-101-000
|
$5.86 $4.39 | ||
| 11 |
Hex Washer Face Bolt, 8x35
96000-0803512CL
|
$2.01 $1.51 | ||
| 12 |
Steer Ing Stem Dust Cover
50301-101-000
|
$4.18 $3.14 | ||
| 13 |
Race,Ball #5
53215-101-000
|
$12.65 $9.49 | ||
| 14 |
Front Fork Ass'Y
51100-361-000
|
$247.36 $185.52 | ||
| 15 |
Steering Stem Comp
51107-118-000
|
|||
| 16 |
Under Bracket
51108-109-000
|
$43.66 $32.74 | ||
| 17 |
Rubber Shroud
51123-118-000
|
$11.41 $8.56 | ||
| 18 |
Cable Strat
51124-107-000
|
$2.59 $1.95 | ||
| 19 |
Spring Circlip
51141-107-000
|
$0.84 $0.63 | ||
| 20 |
R.Outer Tube
51510-361-000
|
