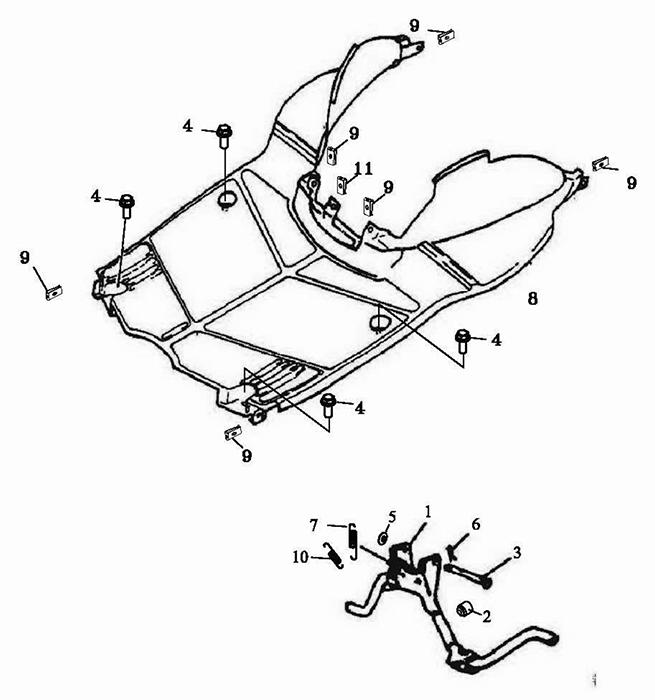

Floor Panel | Main Stand (ADLY GTC-50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Main Stand Comp
50500-125-001
|
$55.47 $41.60 | ||
| 2 |
Rubber Damper
95011-101-000
|
$1.47 $1.10 | ||
| 3 |
Main Stand Fix Shaft, 10*76.8
50503-116-000
|
$5.86 $4.39 | ||
| 4 |
Hex Washer Face Bolt (Black Zinc), 6*30
92006-06030-10K
|
$1.81 $1.36 | ||
| 5 |
Plain Washer, 10.5*18*0.5
94101-1018005A
|
$0.42 $0.31 | ||
| 6 |
Cotter Pin, 2*25
94201-20250B
|
$2.01 $1.51 | ||
| 7 |
Main Stand Reset Spring
95014-71602
|
$4.18 $3.14 | ||
| 8 |
Floor Panel
64310-118-000
|
$52.49 $39.37 | ||
| 9 |
U Plate Nut, 4mm
90344-04000K
|
$0.84 $0.63 | ||
| 10 |
Main Stand Reset Small Spring
95014-71602-0A
|
$2.68 $2.01 | ||
| 11 |
U Plate Nut, 5mm
90345-05000
|
