Oil Pump (Thunder Bike 50)

Change Assembly

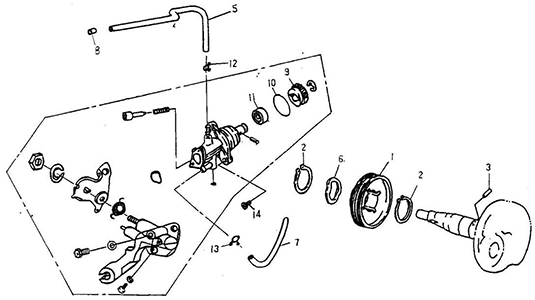

Oil Pump (Thunder Bike 50)
# Product Code: Product Name Req'd Price:
1 15150-104-000 Pump Drive Gear $4.88
2 94511-1900S External Cir Clip, STW-19 $0.80
3 96300-030118 Crank Shaft Pin, 3*11.8 $0.64
4 15100-116-00C Oil Pump $69.23
5 94400-0205250 Oil Tube, 2*5*250 $3.98
6 15151-104-000 Wave Washer, 19.2*26*0.3 $1.20
7 94400-0408300 Tube, 4.8*8*300 $3.72
8 15101-116-000 Steel Ring, 4 mm $0.80
9 15136-110-000 Oil Pump Wormwheel, 40T $11.16
10 91319-110-000 Oil Ring, 19.3*1.6 $6.28
11 96500-09164 Oil Seal, 9.5*16*4 $6.28
12 94510-05000 Clip, 5*0.6 $0.46
13 94510-08000 Clip, 8*0.8 $0.64
14 93500-05016B Pan Phillips Bolt, M5*16 $0.56
Showing 1 to 14 of 14 (1 Pages)
