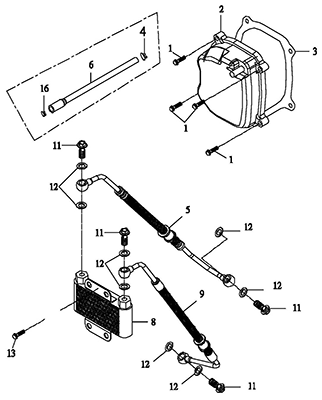

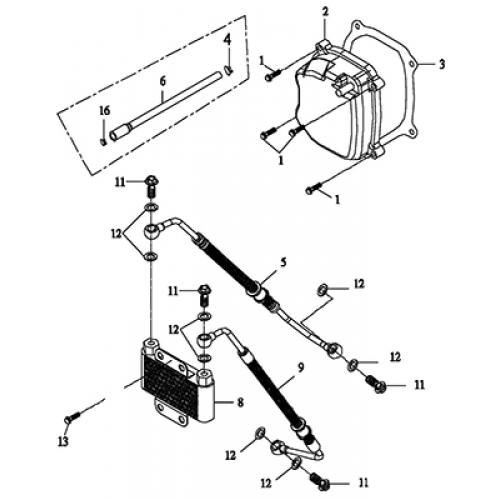

Cylinder Head Cover (Thunder Bike 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Hex Flange Bolt, 6*25
96000-06025-08C
|
$1.17 | ||
| 2 |
Cylinder Head Cover Assy
12310-197-000
|
$36.56 | ||
| 3 |
Head Cover Gasket
12391-197-000
|
$11.72 | ||
| 4 |
Clip, 9*1
94510-09000
|
$0.33 | ||
| 5 |
Breather Tube, 6*8.5
11211-120-000
|
$15.82 | ||
| 6 |
Oil Cooler Collar
17601-197-000
|
$4.02 | ||
| 7 |
Clip, 12mm
94510-12000
|
$0.35 | ||
| 8 |
Oil Cooler
17600-197-000
|
$101.33 | ||
| 9 |
Oil Pipe L
17602-197-000
|
$83.76 | ||
| 10 |
Oil Pipe R
17603-197-000
|
$76.38 | ||
| 11 |
Hex Bolt, 12*28
45456-197-000
|
$4.69 | ||
| 12 |
Al Plain Washer, 12.5*20*1
94104-1220010,94104-1220020
|
$1.51 | ||
| 13 |
Hex Flange Bolt, M8*16
96000-08016-12G
|
$2.01 | ||
| 14 |
Plain Washer, 8*22*1.5
94101-0822015B
|
$0.67 | ||
| 15 |
Nut, 8mm
94053-08000G
|
$2.09 |
