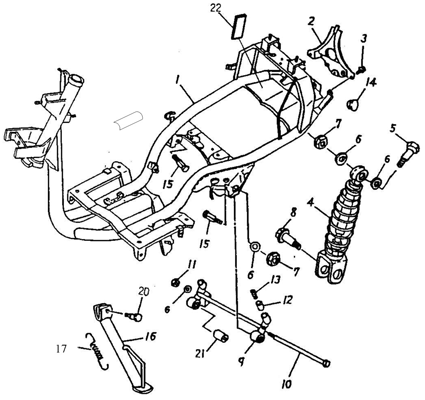

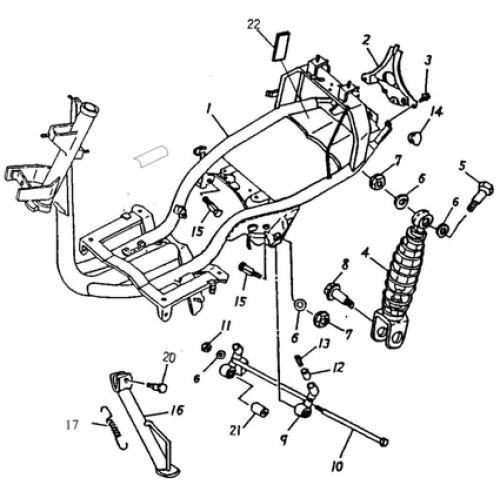

Frame Body (Silver Fox 50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Frame Comp
50100-141-00D
|
|||
| 2 |
Tail Light Fix Bracket
50357-116-000
|
$19.11 | ||
| 3 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 | ||
| 4 |
Rear Cushion Ass'Y
52400-116-001
|
$57.74 | ||
| 5 |
Hex Bolt, 10*40
92000-10040-17B
|
|||
| 6 |
Plain Washer, 10*22*1.5
94101-1022020
|
$0.75 | ||
| 7 |
Nylon Nut, 10mm*1.25
90350-10000C
|
$1.92 | ||
| 8 |
Hex Washer Face Bolt, 8*32
96000-08032-12B
|
$4.18 | ||
| 9 |
Engine Bracket Ass'Y
50350-116-000
|
$45.38 | ||
| 10 |
Hex Washer Face Bolt, 12*250
92000-12250-21C
|
$10.62 | ||
| 11 |
Nylon Insert Lock Nut, 12mm
90350-12000C
|
$2.01 | ||
| 12 |
Bracket Snubber Rubber
50352-104-000
|
$1.34 | ||
| 13 |
Bracket Snubber Spring
50351-104-000
|
$1.59 | ||
| 14 |
Rubber Cap
96421-116-000
|
$1.26 | ||
| 15 |
Engine Mounting Square Bolt, 10*50
90103-116-000
|
$2.68 | ||
| 16 |
Side Stand
50530-116-000
|
$13.84 | ||
| 17 |
Side Stand Reset Spring, 92/61
95014-116-000
|
$3.87 | ||
| 18 |
Frame No. Plate(Radian)
50111-116-000
|
|||
| 19 |
I.D. Plate
50110-101-00D
|
|||
| 20 |
Hex Bolt, 8*25
90108-116-000
|
$2.09 |
