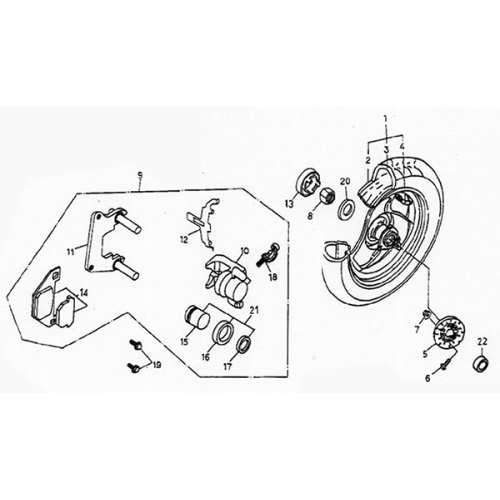

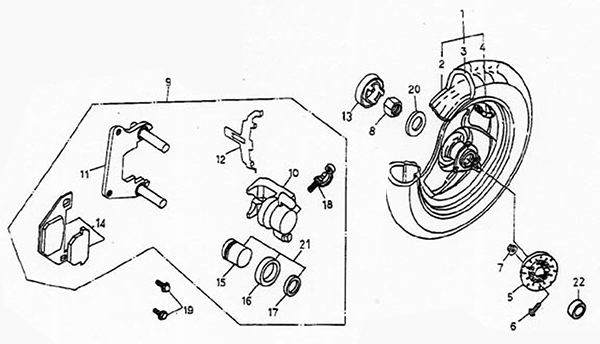

Rear Wheel (Lambretta UNO150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Tire Set
42812-122-000
|
|||
| 2 |
Rear Rim 12”, 12 INCH
42801-122-000
|
|||
| 3 |
Front/Rear Tire 120/70-12
42711-121-000
|
$49.12 | ||
| 4 |
Air Nozzle
42616-104-000
|
$7.32 | ||
| 5 |
Rear Brake Disc, D165
45015-122-000
|
$85.01 | ||
| 6 |
Brake Disc Hex Socket Bolt, 10*20
45016-107-000
|
$2.17 | ||
| 7 |
Hex Flange Nut With Serration, 10mm
94050-10000C
|
$1.26 | ||
| 8 |
Nut Nylon, 16mm
90350-16000C
|
$2.09 | ||
| 9 |
Rear Brake Caliper Assy
43000-122-000
|
$131.20 | ||
| 10 |
Brake Caliper
45010-119-000
|
|||
| 11 |
Bracket Caliper
43001-122-000
|
$12.68 | ||
| 12 |
Snubber Support
45025-119-000
|
|||
| 13 |
Rear Tire Cover
42814-122-000
|
$8.05 | ||
| 14 |
Brake Pad
45120-119-000
|
$39.99 | ||
| 15 |
Caliper Piston
45046-119-000
|
|||
| 16 |
Caliper Seal
45041-119-000
|
|||
| 17 |
Caliper Oil Seal
45042-119-000
|
$1.81 | ||
| 18 |
Breed Screw Kit
45031-119-000
|
|||
| 19 |
Hex Washer Face Bolt, 8*18
96000-08018-12
|
|||
| 20 |
Plain Washer, 15.2*28*1
94101-1528010
|
$1.34 |
