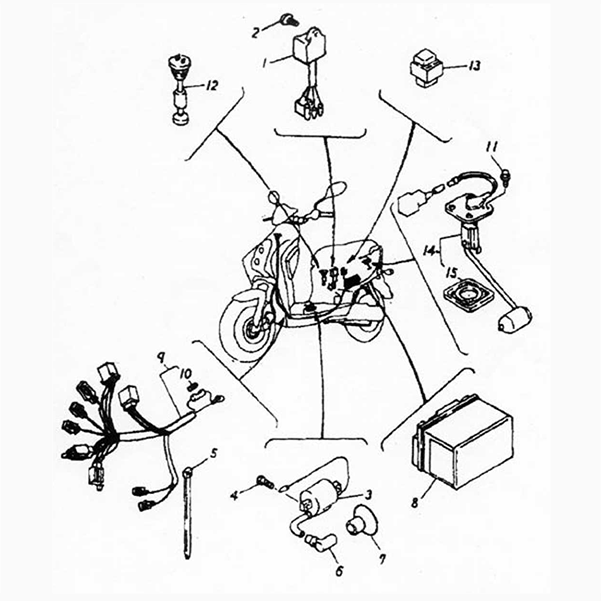

Electrical Equipment
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
C.D.I Unit (30410)
30410-116-000
|
$67.76 | ||
| 2 |
Pan Phillips Bolt, 6*15
93500-06015B
|
$0.67 | ||
| 3 |
High Tension Coil, L=300
30510-110-000
|
$44.12 | ||
| 4 |
Hex Flange Bolt, M6*20
96000-06020-10G
|
$1.84 | ||
| 5 |
Cable Tie, 4.8*200m/m
90669-101-000
|
$0.67 | ||
| 6 |
Spark Plug Cap
30700-116-000
|
$6.33 | ||
| 7 |
Rubber Cap
30605-116-000
|
$4.25 | ||
| 8 |
Battery BTX4L-BS
31500-116-000
|
$31.50 | ||
| 9 |
Main Wire Harness(Rev.2)
32100-159-00A
|
|||
| 10 |
Fuse, 7A
98200-106-000
|
$3.35 | ||
| 11 |
Round Phillips Bolt, 5*12
93000-05012C
|
$0.33 | ||
| 12 |
Oil Level Gauge
35410-116-000
|
$20.43 | ||
| 13 |
Starting Relay
38501-105-001
|
$40.41 | ||
| 14 |
Petrol Gauge Ass'Y
37800-116-000
|
$32.95 | ||
| 15 |
Fuel Lever Gauge Gasket
37801-101-000
|
$3.77 |
