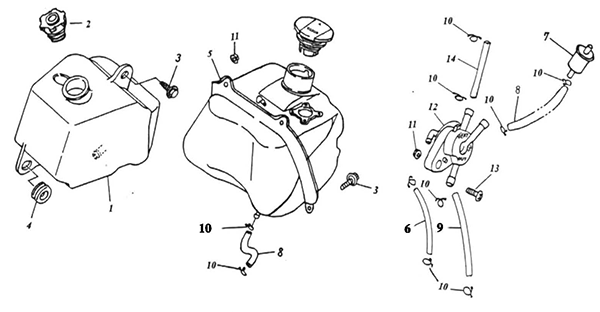

Fuel Tank | Oil Tank (Adly Noble ST-50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Oil Tank(Rev.1)
55100-116-000
|
$36.56 | ||
| 2 |
Oil Tank Cap
55105-101-000
|
|||
| 3 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 | ||
| 4 |
Grommet
83553-116-000
|
$1.34 | ||
| 5 |
Fuel Tank Comp
17500-125-001
|
$69.33 | ||
| 6 |
Tube, 3.5*7.5
94400-03575
|
$3.20 | ||
| 7 |
Petrol Filter
16952-145-000
|
|||
| 8 |
Tube, 4.8*8*50
94400-0408050
|
$0.67 | ||
| 9 |
Tube, 4.8*8*160
94400-0408160
|
|||
| 10 |
Clip, 8*0.8
94510-08000
|
$0.69 | ||
| 11 |
Hex Flange Nut, 6mm
94050-06000C
|
|||
| 12 |
Fuel Cup
16950-116-000
|
|||
| 13 |
Pan Flat Head Phillips Bolt, 6*15
93701-06015S
|
$1.67 | ||
| 14 |
Tube, 4.8*8*300
94400-0408A300
|
$3.91 |
