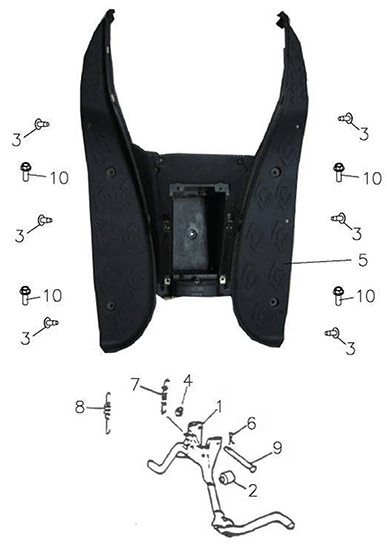

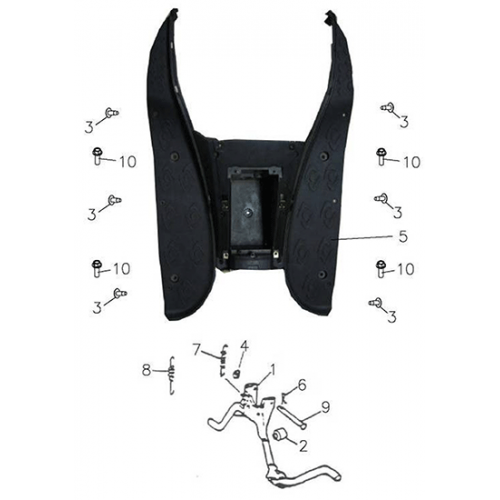

Front Panel, Main Stand (Adly GTA-50 2010)

Change Assembly

Front Panel, Main Stand (Adly GTA-50 2010)
# Product Name Req'd Price:
1 Main Stand Comp. (13"Tire)
50500-381-000
2 Rubber Damper
95011-101-000
$1.47
3 Tapping Screw Truss Head Phillips, 4*12
93903-04012K
4 Plain Washer, 10.5*18*0.5
94101-1018005A
$0.42
5 Floor Panel
64310-381-000
6 Cotter Pin, 2*25
94201-20250B
$2.01
7 Main Stand Reset Spring
95014-71602
$4.18
8 Main Stand Reset Small Spring
95014-71602-0A
$2.68
9 Main Stand Fix Shaft, 10*76.8
50503-116-000
$5.86
10 Hex Washer Face Bolt, 6*14
92006-06014-10G
$2.09
Showing 1 to 10 of 10 (1 Pages)
