Carburetor (Adly GTA-50 2010)

Change Assembly

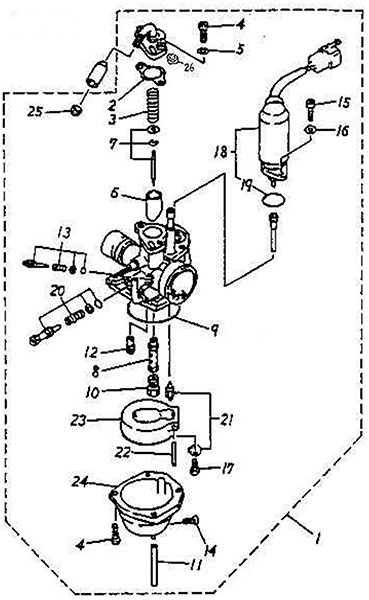

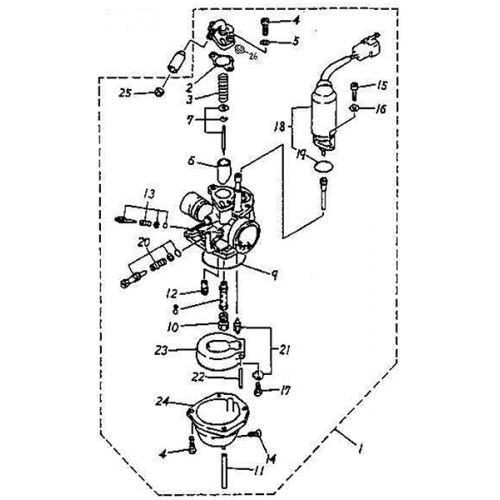

Carburetor (Adly GTA-50 2010)
# Product Name Req'd Price:
1 Carburetor Ass'Y, #70
16100-116-0AH
2 Carburetor Gasket
16101-116-000
$2.98
3 Throttle Valve Spring
16102-116-000
$2.72
4 Pan Phillips Bolt, 4*14
93500-04014
$1.51
5 Spring Washer, 4*7*1
94111-0407010
$0.33
6 Throttle Valve
16103-116-000
$19.77
7 Needle Set
16104-116-000
$11.72
8 Needle Nozzle, E-1
16105-116-000
$11.72
9 Float Chamber Seal
16106-116-000
10 Main Nozzle, #70
16108-116-00C
11 Over Flow Tube, 4*7
16109-116-000
12 Pilot Jet, #17.5
16110-116-000
$12.06
13 Air Adjust Screw Set
16115-116-000
14 Drain Plug
16111-116-000
$2.50
15 Pan Phillips Bolt, 4*8
93500-04008C
$1.34
16 Spring Washer, 4*6.5*1
94111-0406510
$3.35
17 Pan Phillips Bolt, 3*8
93500-03008C
$2.01
18 Adly Plunger Starter
17215-116-000
19 Oil Ring, 14*1.5
91314-116-000
$3.50
20 Throttle Screw Set
16114-116-000
Showing 1 to 20 of 26 (2 Pages)
