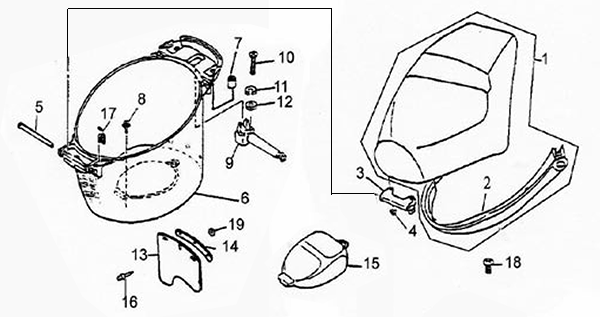

Seat (Lambretta UNO150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Seat Ass'Y
77200-125-000
|
$126.79 | ||
| 2 |
Seal
77209-116-000
|
$13.64 | ||
| 3 |
Seat Bracket
77201-116-000
|
$5.86 | ||
| 4 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 5 |
Seat Fix Shaft, 10*115
77203-116-000
|
$3.35 | ||
| 6 |
Helmet Box
77207-120-000
|
|||
| 7 |
Space Tube, 6.5*12*7
81203-116-000
|
|||
| 8 |
Hex Washer Face Bolt, 6*10
96000-06018-10C
|
|||
| 9 |
Seat Lock Ass'Y
77230-116-000
|
$29.00 | ||
| 10 |
Pan Phillips Bolt, 6*40
93500-06040C
|
|||
| 11 |
Spring Washer , 6*12*1.5
94111-0612015B
|
$0.50 | ||
| 12 |
Plain Washer, 6*13*1
94101-0613010B
|
$0.50 | ||
| 13 |
Fender
77205-120-000
|
$7.32 | ||
| 14 |
Fender Bracket
77206-120-000
|
$4.18 | ||
| 15 |
Cover,Carburatetor Maintenance
77202-120-000
|
|||
| 16 |
Rivet, #6-5
90662-118-000
|
$0.17 | ||
| 17 |
Helmet Hook
77106-125-000
|
|||
| 18 |
Pan Flat Head Phillips Bolt, 6*15
93701-06015S
|
$1.67 | ||
| 19 |
Plain Washer, 4*12*1
94101-0412010K
|
