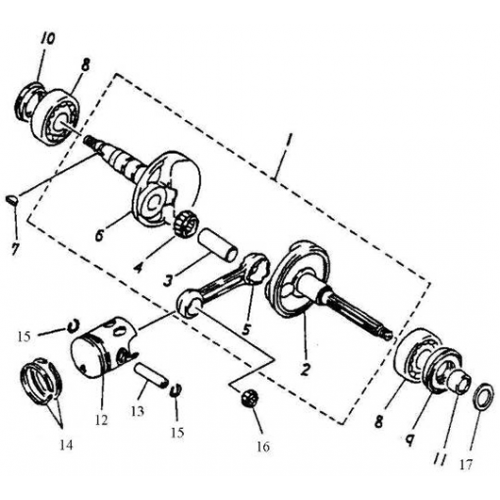

Crankshaft, Piston (Adly Jet 50)

Change Assembly

Crankshaft, Piston (Adly Jet 50)
# Product Name Req'd Price:
1 Adly 50cc Crankshaft Ass'Y
13000-116-000
2 Left Crank
13321-116-000
3 Crank Pin
13381-104-000
$10.62
4 Needle Bearing, 16*22*12
96200-162212
$14.23
5 Crank Connecting Rod
13201-104-000
6 Right Crank
13311-116-000
$92.40
7 Semicycle Key, 3*13
90471-104-000
$2.85
8 Radial Ball Bearing, 6204C3
96100-62040
9 Oil Seal, 20*42/43*8/9
96500-20428
10 Oil Seal, 20*30/33*6
96500-20306
11 Left Crank Collar, 15*20*12
13316-116-000
$3.35
12 Adly 50cc Piston
13100-116-000
$40.99
13 Piston Pin, 7*10*33
13111-104-000
$6.85
14 Piston Ring Set, STD
13011-116-000
$26.99
15 Piston Pin Clip, 1.0*12
13115-104-000
$0.75
16 Needle Bearing, 10*14*12.5
96200-101412
$11.99
17 Plain Washer, 13*19*0.5
94101-1319005A
$0.84
Showing 1 to 17 of 17 (1 Pages)
