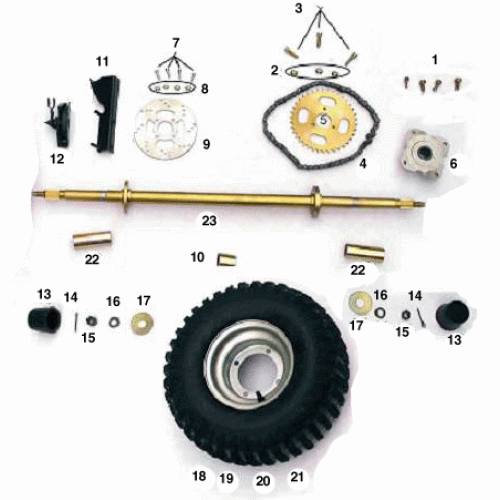

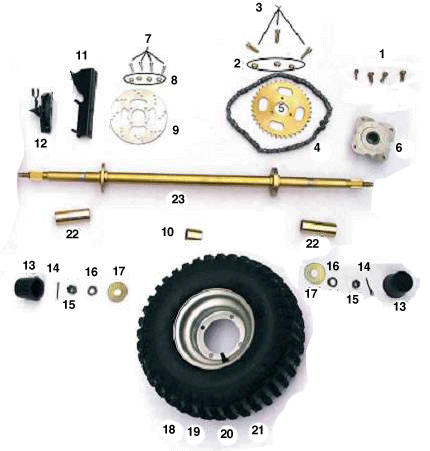

Rear Wheel (Dazon Raider 90 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Bolt, Flange
95710-08016-1B
|
$1.05 | ||
| 2 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 3 |
Bolt, Socket-head
96050-08030-1B
|
$1.74 | ||
| 4 |
Chain
40530-BDD0-0000
|
$31.38 | ||
| 5 |
Sprocket
41200-BDD0-0000
|
$52.83 | ||
| 6 |
Rear Hub, Rear
42610-ADA0-0000
|
$51.98 | ||
| 7 |
Screw, Socket-head M6*22
96050-06022-0D
|
|||
| 8 |
Lock Nut, Flange
90210-06B01-1B
|
$1.26 | ||
| 9 |
Disc, Brack
45120-ADA0-0000
|
$48.02 | ||
| 10 |
Spacer, Rear Wheel Axle
42351-BDD0-0000
|
$1.67 | ||
| 11 |
Mounting Plate, Disc Brake
45211-BDD0-0010
|
$55.23 | ||
| 12 |
Caliper Comp., Brake
45200-BDD0-0000
|
|||
| 13 |
Cap, Rear Wheel Axle
44691-BCA0-0001
|
|||
| 14 |
Pin, Cotter 2.5*3.2
94200-25320-0C
|
$0.14 | ||
| 15 |
Nut, Flange M14*1.5
90200-14E02-0C
|
$2.12 | ||
| 16 |
Washer, Flat
94110-16B01-0C
|
$0.84 | ||
| 17 |
Holder, Rear Wheel Cap
42703-BCA0-0000
|
$4.18 | ||
| 18 |
Rear Tire 16x8-7
42710-BDD0-0000
|
$56.60 | ||
| 19 |
Wheel Rim, Rear
42706-BDD0-0000
|
$79.79 | ||
| 20 |
Stem, Valve
42753-BCA0-0000
|
$0.98 |
