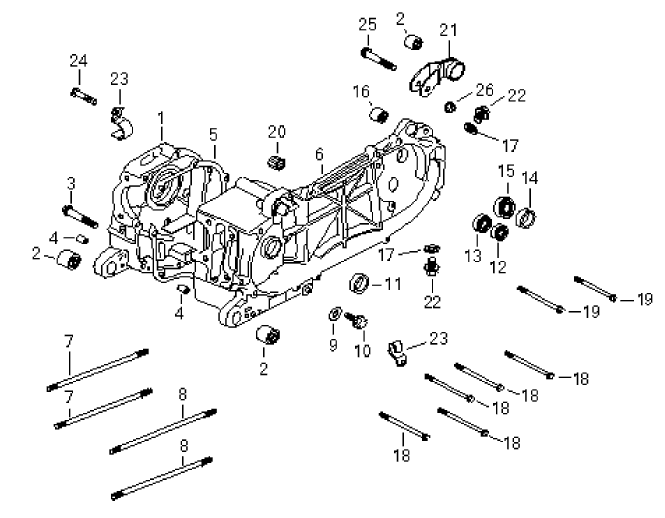

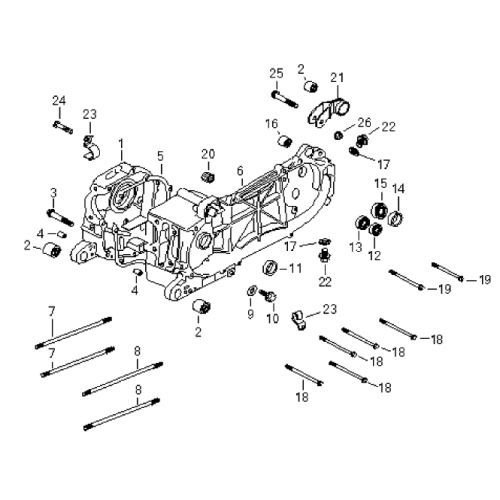

Crankcase Assy (Bombardier Mini DS 90 4T)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Right Hand.Crankcase
A11101175000
|
$120.34 | ||
| 2 |
Rubber Bushing
A96400102820
|
$4.18 | ||
| 3 |
Hexagonal Washer Face Bolt
A960000605008
|
|||
| 4 |
Dowel Pin (8X14)
A9430108140
|
$1.26 | ||
| 5 |
Crankcase Gasket
A11191133000
|
$5.86 | ||
| 6 |
Left Hand.Crankcase
A11201175000
|
$145.74 | ||
| 7 |
Stud Bolt
A9100107168
|
$5.13 | ||
| 8 |
Stud Bolt
A9100107176
|
$5.56 | ||
| 9 |
Washer Plain
A941011221320
|
|||
| 10 |
Hex Washer Face Bolt M12X15
A960001201514
|
|||
| 11 |
Oil Ring
A9650019305
|
$3.14 | ||
| 12 |
Radial Ball Bearing
A9610062030
|
$10.46 | ||
| 13 |
Radial Ball Bearing (6201)
A9610062010
|
$8.37 | ||
| 14 |
Oil Ring
A9650017306
|
$3.14 | ||
| 15 |
Radial Ball Bearing
A961006203S
|
$27.89 | ||
| 16 |
Rubber Bushing
A964000820200A
|
$4.53 | ||
| 17 |
Washer Plain
A941010816020
|
$0.50 | ||
| 18 |
Hexagonal Washer Face Bolt
A960000803512G
|
$2.01 | ||
| 19 |
Hexagonal Washer Face Bolt
A960000804012K
|
$1.59 | ||
| 20 |
Needle Bearing (Hk8 X 12 X 10)
A96200081210
|
$12.55 |
