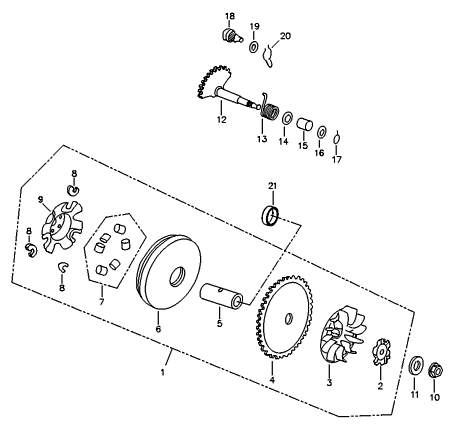

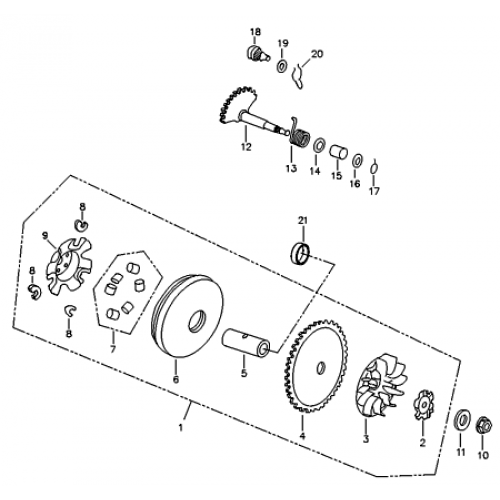

Drive Face (Adly ATV 90RV 4T)

Change Assembly

Drive Face (Adly ATV 90RV 4T)
# Product Name Req'd Price:
1 Drive Pully Ass'Y
22103-206-000
2 Kick Starter Ratchet
22140-133-000
$15.82
3 Fan Cvt Cooling
22106-133-000
$12.45
4 Drive Face
22102-133-000
$23.72
5 Bush, 14*20*38.15
96401-1420375
6 Face Comp Movable Drive
22110-133-000
7 Weight Roller, 8.5 Set
22121-175-000
$15.82
8 Side Piece
22132-133-000
$1.67
9 Ramp Plate
22131-133-000
$10.98
10 Hex Flange Nut With Serration, 12mm
94050-12000C
$2.68
11 Plain Washer, 12*22*2
94101-1222020A
$0.84
12 Starter Spindle
28251-133-000
$23.72
13 Starter Spring
28281-133-000
$5.86
14 Kick Boss Collar
28255-133-000
$3.35
15 Starter Spindle Bush B, 14*18*21
96401-141821
$4.18
16 Plain Washer, 14*21*1.5
94101-1421015A
$1.26
17 External Cir Clip, STW-14
94511-1400S
$5.13
18 Kick Pinion Ass'Y
28230-133-000
$25.04
19 Plain Washer, 10*17*1
94101-1017010B
$0.84
20 Kick Pinion Spring Clip
28223-133-000
Showing 1 to 20 of 21 (2 Pages)
