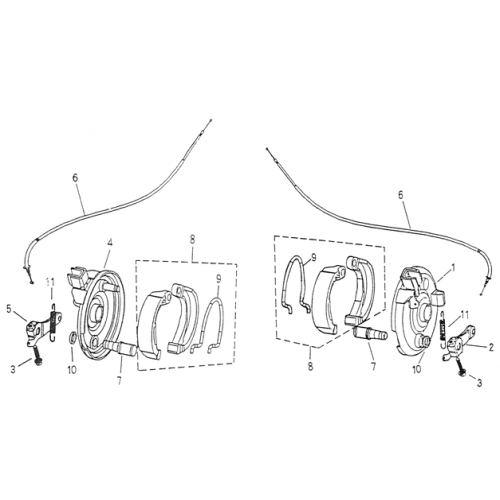

Front Brake (Adly ATV 90II 4T (CVT))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Front Left Brake Panel(Rev.4)
45010-145-000
|
$26.25 | ||
| 2 |
Front Left Brake Arm
45410-145-000
|
$11.86 | ||
| 3 |
Hex Washer Face Bolt, 5*24
96000-05024-08C
|
$2.72 | ||
| 4 |
Front Right Brake Panel(Rev.4)
45020-145-000
|
$24.99 | ||
| 5 |
Front Right Brake Arm
45310-145-000
|
$11.86 | ||
| 6 |
Front Brake Cable, L=822
45450-145-000
|
$24.99 | ||
| 7 |
Front Brake Cam Shaft(Rev.3)
45141-145-000
|
$10.98 | ||
| 8 |
Front Brake Shoe Comp
45120-145-001
|
$30.25 | ||
| 9 |
Strain Spring
45133-145-000
|
|||
| 10 |
Oil Ring, 12.5*3
91313-104-000
|
|||
| 11 |
Reset Spring
45437-145-000
|
