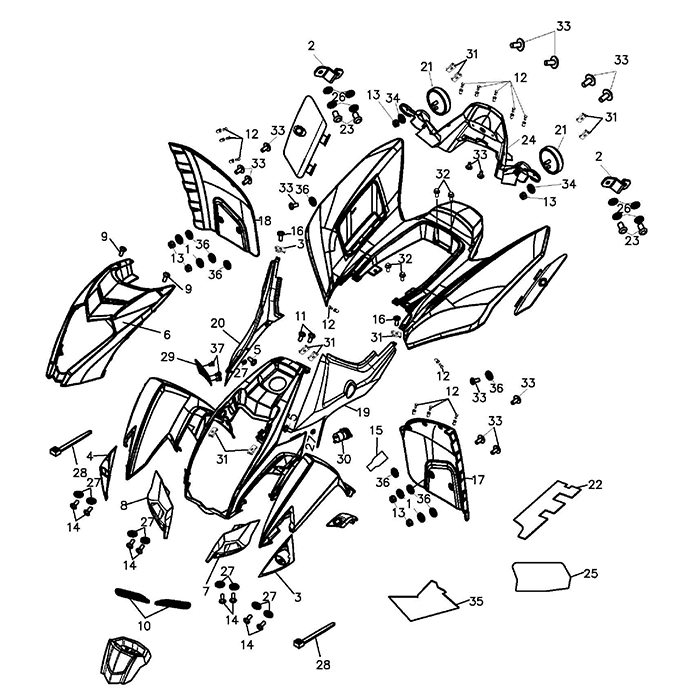

Body Cover | Seat
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Plain Washer (Black Zinc), 6*18*2
94101-0618020K
|
$0.60 | ||
| 2 |
Inner Box Lid Bracket
81144-225-000
|
|||
| 3 |
Left Signal Light Cover
64325-225-000
|
|||
| 4 |
Right Signal Light Cover
64326-225-000
|
|||
| 5 |
Tapping Screw Truss Head Phillips, 4*12
93903-04012K
|
|||
| 6 |
FRONT FASCIA
64321-505-000
|
|||
| 7 |
LEFT AIRING COVER
64305-501-000
|
|||
| 8 |
RIGHT AIRING COVER
64304-501-000
|
|||
| 9 |
Pan Phillips Bolt, 6*16
93800-06016K
|
$0.42 | ||
| 10 |
Screen Net
64353-225-000
|
|||
| 11 |
Pan Flat Head Phillips Bolt, 6*12
93701-06012G
|
|||
| 12 |
Plastic Bolt
90663-179-000
|
$2.59 | ||
| 13 |
Nylon Nut, M6
90350-06000G
|
$0.84 | ||
| 14 |
Tapping Screw Truss Head Phillips, 4*16
93903-04016K
|
$0.25 | ||
| 15 |
PROTECT PAD
32105-145-00C
|
|||
| 16 |
Pan Phillips Bolt, 6*15
93800-06015S
|
$3.35 | ||
| 17 |
L.FRONT FENDER
61100-501-000
|
|||
| 18 |
R.FRONT FENDER
61101-501-000
|
|||
| 19 |
LEFT SIDE COVER
83600-501-000
|
|||
| 20 |
RIGHT BODY COVER
83500-501-001
|
