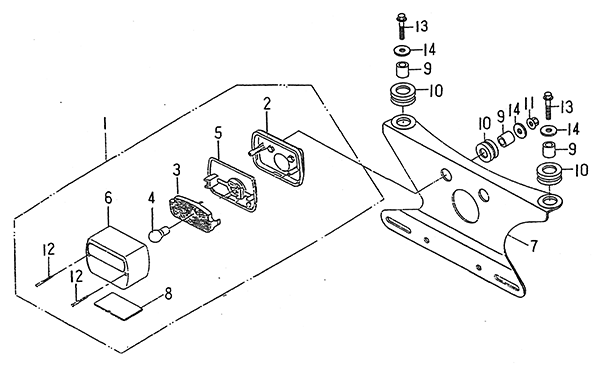

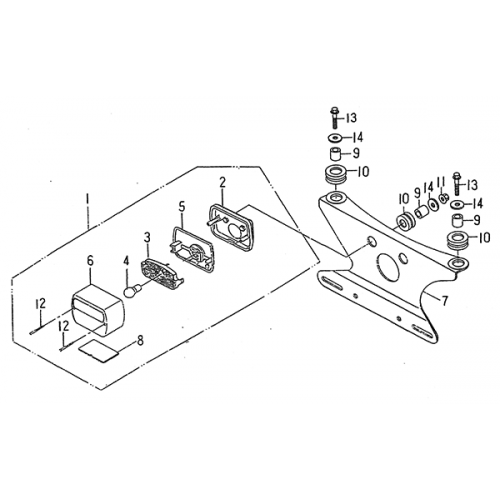

Tail Light (LRX/SMC Blast ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Tail Light Assembly
55700-RAM-00
|
$40.82 | ||
| 2 |
STAND, TAILLIGHT
55701-CHP-00
|
$10.46 | ||
| 3 |
Bulb Stand, Tail Light
55713-RAM-00
|
$7.25 | ||
| 4 |
BULB , TAIL LIGHT
55714-PAF-00
|
|||
| 5 |
Fixing Washer
55715-RAM-00
|
|||
| 6 |
LENS, TAIL LIGHT
55721-PAF-00
|
$15.06 | ||
| 7 |
HOLDER, TAIL LIGHT
55726-RAM-00
|
$15.06 | ||
| 8 |
LENS, LICENSE LIGHT
55743-PAF-00
|
$2.78 | ||
| 9 |
COLLAR
93510-061010
|
$1.45 | ||
| 10 |
GROMMET
93580-102212
|
$3.30 | ||
| 11 |
NUT, FLANGE
95401-061006-B
|
$0.85 | ||
| 12 |
SCREW,TAPPING
96112-43818-B
|
$0.35 | ||
| 13 |
BOLT,FLANGE 6*20
96414-06020-B
|
$0.68 | ||
| 14 |
WASHER,PLATE
97201-061820-B
|
$0.45 |
