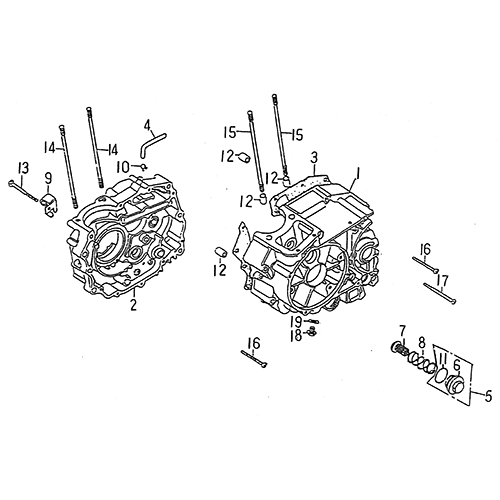

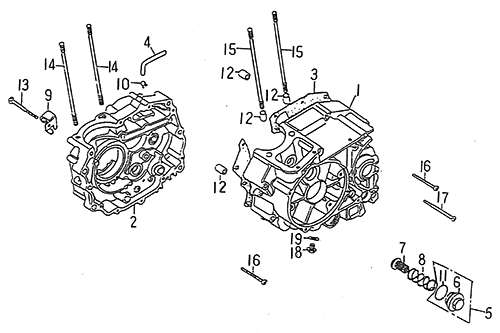

Crankcase (LRX/SMC Blast ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CRANKCASE, LEFT
15111-CHI-00
|
$92.69 | ||
| 2 |
CRANKCASE, RIGHT
15211-CHI-00
|
$92.69 | ||
| 3 |
GASKET, CRANKCASE
15251-CHI-00
|
$11.28 | ||
| 4 |
HOSE
15276-CHP-00
|
$4.17 | ||
| 5 |
CAP ASS'Y OIL FILTER SCREEN
15531-CHP-00
|
$5.56 | ||
| 6 |
CAP, OIL FILTER SCREEN
15533-CHP-00
|
$2.78 | ||
| 7 |
SCREEN, OIL FILTER
15536-CHP-00
|
$3.49 | ||
| 8 |
SPRING, OIL FILTER SCREEN
15538-CHP-00
|
$1.38 | ||
| 9 |
HOLDER, CLUTCH WIRE
25793-CHP-00
|
$4.18 | ||
| 10 |
CLIP 1.0*14.7
90210-10015
|
$0.56 | ||
| 11 |
O-RING 3.0*35
93210-30350
|
$1.39 | ||
| 12 |
PIN DOWEL 10*14
94410-10014
|
$1.39 | ||
| 13 |
BOLT 6*55
94714-06055-B
|
$1.19 | ||
| 14 |
BOLT, STUD 8*122
94717-08122-C
|
$4.18 | ||
| 15 |
BOLT, STUD 8*130
94717-08130-C
|
$3.49 | ||
| 16 |
BOLT, FLANGE
96411-06050-B
|
$1.26 | ||
| 17 |
BOLT, FLANGE 6*95
96411-06095-B
|
$1.39 | ||
| 18 |
BOLT, FLANGE 12*15
96414-12015-B
|
$4.18 | ||
| 19 |
WASHER, ALUMINUM 12.3*20*2
97231-122020
|
$1.26 |
