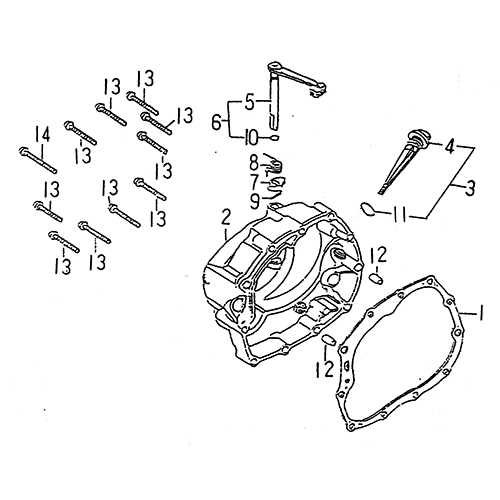

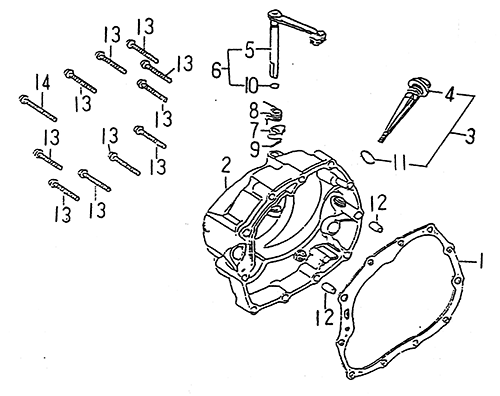

Right Crankcase Cover (LRX/SMC Blast ATV 150)

Change Assembly

Right Crankcase Cover (LRX/SMC Blast ATV 150)
# Product Name Req'd Price:
1 GASKET, R CRANKCASE COVER
15221-CHP-00
2 COVER, R CRANKCASE COMP
15511-RAM-00
$89.76
3 GAUGE ASS'Y OIL LEVER
15561-CHP-00
$8.35
4 GAUGE, OIL LEVEL
15563-CHP-00
$5.56
5 LEVER, CLUTCH
25723-CHP-00
$12.55
6 LEVER COMP, CLUTCH
25725-CHP-00
$15.06
7 CAM, CLUTCH LIFTER
25732-CHP-00
$7.06
8 SPRING, CLUTCH LEVER
25753-CHP-00
$3.02
9 PIN COTTER 1.8*16
90240-18016-B
$0.35
10 O-RING 1.9*6.8
93210-19068
$1.05
11 O-RING 3*18
93210-30180
$1.39
12 PIN, DOWEL 8*14
94410-08014
$1.39
13 BOLT, FLANGE
96411-06040-B
$1.39
14 BOLT, FLANGE
96411-06050-B
$1.26
Showing 1 to 14 of 14 (1 Pages)
