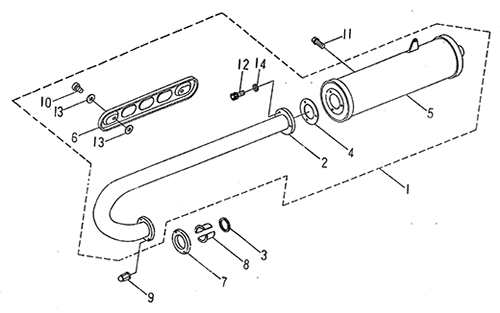

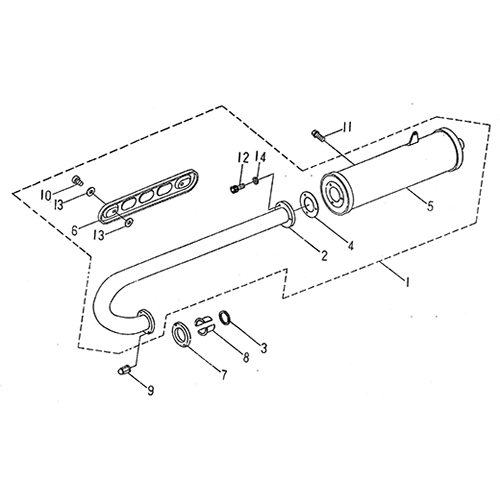

Exhaust Muffler (LRX/SMC Blast ATV 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
EXHAUST MUFFLER ASS'Y
31610-RAM-00
|
$104.43 | ||
| 2 |
PIPE, EXHAUST
31611-RAM-00
|
$57.49 | ||
| 3 |
GASKET, EXHAUST PIPE
31613-CHP-00
|
$5.51 | ||
| 4 |
GASKET, MUFFLER
31614-RAM-00
|
$2.30 | ||
| 5 |
MUFFLER COMP
31617-RAM-00
|
$51.98 | ||
| 6 |
PROTECTOR, EXHAUST
31618-RAM-00
|
$15.45 | ||
| 7 |
JOINT, EXHAUST PIPE
31621-CHP-00
|
$9.75 | ||
| 8 |
COLLAR, EXHAUST PIPE JOINT Set
31623-CHP-00
|
$8.35 | ||
| 9 |
NUT, CAP 6MM
95501-061017-B
|
$2.79 | ||
| 10 |
SCREW, PAN HEAD
96316-06010-K
|
$0.68 | ||
| 11 |
BOLT, FLANGE
96414-08016-B
|
$0.68 | ||
| 12 |
BOLT,SOCKET
96510-06020-K
|
$1.39 | ||
| 13 |
WASHER, PLATE
97210-061215
|
$0.70 | ||
| 14 |
WASHER, SPRING 6.5*11*1.5
97301-061115-K
|
