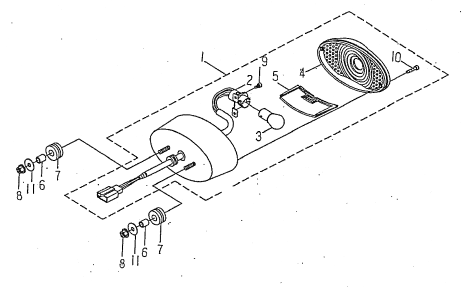

Tail light (LRX/SMC ATV 50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
TAIL LIGHT ASS'Y
55700-BL9-00
|
$40.99 $30.74 | ||
| 2 |
BULB STAND, TAIL LIGHT
55713-BL9-00
|
$10.46 $7.85 | ||
| 3 |
BULB , TAIL LIGHT
55714-PAF-00
|
|||
| 4 |
LENS, TAIL LIGHT
55721-BL9-00
|
$12.65 $9.49 | ||
| 5 |
LENS, LICENSE LIGHT
55743-BL9-00
|
$3.84 $2.88 | ||
| 6 |
COLLAR
93510-061010
|
$1.45 $1.09 | ||
| 7 |
GROMMET
93580-102212
|
$3.30 $2.48 | ||
| 8 |
NUT, FLANGE
95401-061006-B
|
$0.85 $0.64 | ||
| 9 |
Screw, Tapping
96110-40618-K
|
|||
| 10 |
Screw, Tapping
96110-41618-K
|
|||
| 11 |
WASHER,PLATE
97201-061820-B
|
$0.45 $0.34 |
