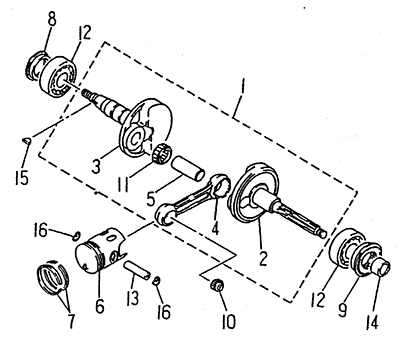

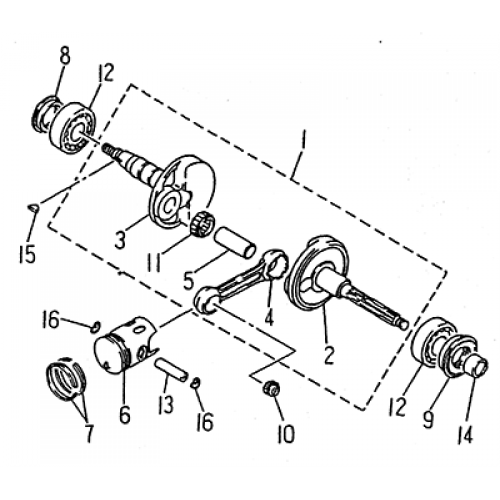

Crankshaft | Piston (LRX/SMC ATV 50 mini)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CRANKSHAFT ASSEMBLY
11400-SK5-00
|
$117.99 | ||
| 2 |
CRANK L
11412-SK5-00
|
$46.82 | ||
| 3 |
CRANK R
11422-SK5-00
|
$57.49 | ||
| 4 |
ROD, CONNECTING
11451-NAF-00
|
$25.09 | ||
| 5 |
PIN, CRANK
11481-NAF-00
|
$9.76 | ||
| 6 |
PISTON (STD)
11631-NAF-00
|
$34.90 | ||
| 7 |
PISTON RING SET (STD)
11636-SK2-00
|
$25.09 | ||
| 8 |
OIL SEAL
93110-20306
|
|||
| 9 |
OIL SEAL
93110-20428
|
|||
| 10 |
BEARING, NEEDLE ROLLER
93310-1014125
|
$14.55 | ||
| 11 |
BEARING, NEEDLE ROLLER
93310-1622118
|
$12.55 | ||
| 12 |
BEARING, RADIAL BALL
93320-204714J
|
$10.65 | ||
| 13 |
PIN, PISTON
93510-051033
|
$4.18 | ||
| 14 |
COLLAR
93510-152012
|
$3.14 | ||
| 15 |
KEY, SEMICIRCLE
94420-03013
|
$1.39 | ||
| 16 |
CIRCLIP
97050-10012
|
$0.84 |
