Carburetor (LRX/SMC ATV 50 mini)

Change Assembly

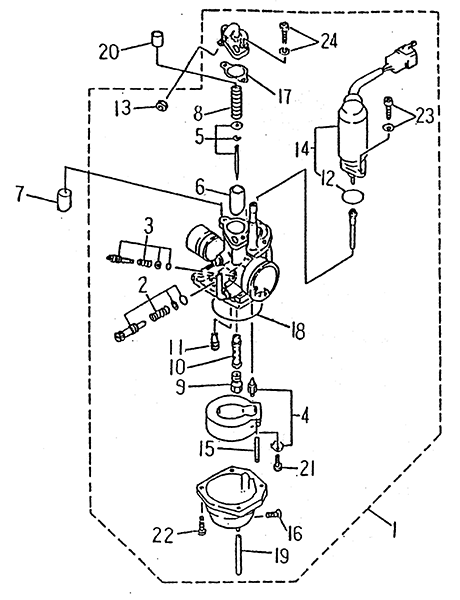

Carburetor (LRX/SMC ATV 50 mini)
# Product Code: Product Name Req'd Price:
1 13201-NAF-01 CARBURETOR ASSEMBLY $139.99
2 13203-NAF-00 THROTTLE SCREW SET $6.50
3 13204-NAF-00 AIR SCREW SET $6.50
4 13207-NAF-00 NEEDLE VALVE SET $17.93
5 13211-NAF-00 NEEDLE SET $10.63
6 13212-NAF-00 VALVE THROTTLE $17.93
7 13223-NAF-00 Plug, Valuum
8 13233-NAF-00 SPRING, THROTTLE STOP $2.09
9 13240-NAF-01 Jet, Main (#55)
10 13241-NAF-00 NOZZLE, MAIN $10.63
11 13242-NCF-01 Jet, Pilot (#25)
12 13247-NAF-00 O-RING $4.03
13 13261-NAF-00 NUT, CABLE ADJUSTER $0.86
14 13271-NAF-00 PLUNGER, STARTER $61.46
15 13286-NAF-00 PIN, FLOAT $1.44
16 13291-NAF-00 PLUG, DRAIN $1.33
17 13296-NAF-00 GASKET, CARBURETOR $0.78
18 13297-NAF-00 Float Chamber Seal $3.32
19 13298-NAF-00 PIPE $0.78
20 93510-111411 Collar (11Mm)
Showing 1 to 20 of 24 (2 Pages)
