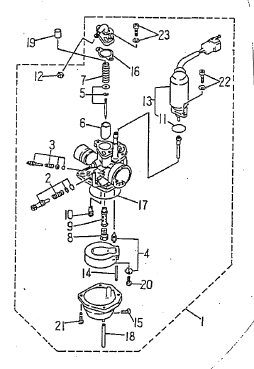

CARBURETOR (Kasea Skyhawk 90 Quad)
Change Assembly
| # | Product Code: | Product Name | Req'd | Price: | |
|---|---|---|---|---|---|
| 1 | 13201-NAN-00 | CARBURETOR ASSEMBLY | $139.99 | ||
| 2 | 13203-NAF-00 | THROTTLE SCREW SET | $6.50 | ||
| 3 | 13204-NAF-00 | AIR SCREW SET | $6.50 | ||
| 4 | 13207-NAF-00 | NEEDLE VALVE SET | $17.93 | ||
| 5 | 13211-NAF-00 | NEEDLE SET | $10.63 | ||
| 6 | 13212-NAF-00 | VALVE THROTTLE | $17.93 | ||
| 7 | 13233-NAF-00 | SPRING, THROTTLE STOP | $2.09 | ||
| 8 | 13240-NAN-00 | JET, MAIN (#82.5) | $10.63 | ||
| 9 | 13241-NAF-00 | NOZZLE, MAIN | $10.63 | ||
| 10 | 13242-NCF-00 | JET, PILOT (#20) | $11.18 | ||
| 11 | 13247-NAF-00 | O-RING | $4.03 | ||
| 12 | 13261-NAF-00 | NUT, CABLE ADJUSTER | $0.86 | ||
| 13 | 13271-NAF-00 | PLUNGER, STARTER | $61.46 | ||
| 14 | 13286-NAF-00 | PIN, FLOAT | $1.44 | ||
| 15 | 13291-NAF-00 | PLUG, DRAIN | $1.33 | ||
| 16 | 13296-NAF-00 | GASKET, CARBURETOR | $0.78 | ||
| 17 | 13297-NAF-00 | Float Chamber Seal | $3.32 | ||
| 18 | 13298-NAF-00 | PIPE | $0.78 | ||
| 19 | 93510-111414 | COLLAR (11mm) | $1.13 | ||
| 20 | 96310-03006-C | SCREW, PAN HEAD | $0.65 |
