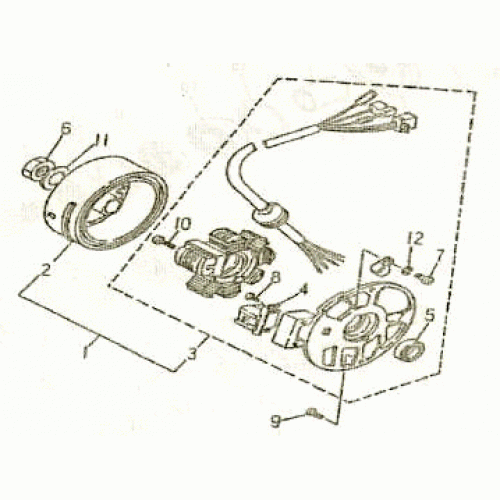

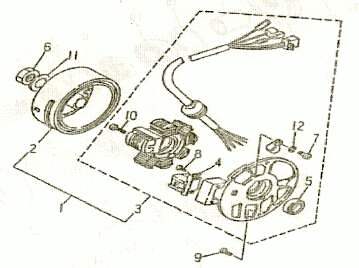

GENERATOR (Kasea Skyhawk 50mini Quad)

Change Assembly

GENERATOR (Kasea Skyhawk 50mini Quad)
# Product Code: Product Name Req'd Price:
1 35500-NAF-00 GENERATOR ASSEMBLY $154.00
2 35550-NAF-00 ROTOR ASSEMBLY $40.54
3 35560-NAF-00 BASE ASSEMBLY $116.99
4 35580-NAF-00 COIL PULSER $36.38
5 93110-19265 OIL SEAL $8.09
6 95201-101408-C NUT,HEXAGON $0.57
7 96310-04006-C SCREW, PAN HEAD $0.57
8 96310-06010-C SCREW, PAN HEAD $0.57
9 96310-06016-C SCREW, PAN HEAD $0.58
10 96310-06025-C SCREW, PAN HEAD $0.58
11 97201-101726-C WASHER, PLATE $0.68
12 97301-040710-C WASHER, SPRINGS $0.29
Showing 1 to 12 of 12 (1 Pages)
