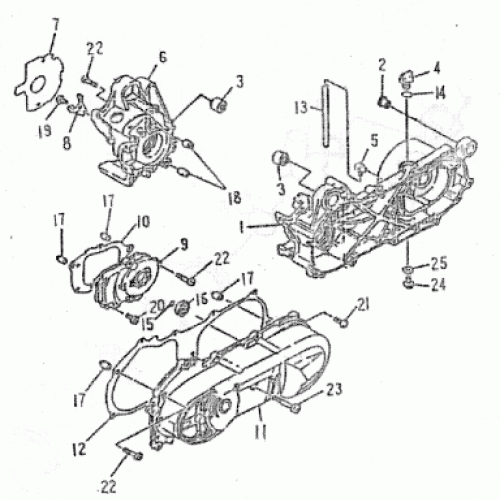

CRANKCASE (Kasea Skyhawk 50mini Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CRANKCASE, LEFT
15111-SK5-00
|
$92.69 | ||
| 2 |
NUT, FLANGE
15116-SK2-01
|
$2.09 | ||
| 3 |
BUSH, ENGINE HANGER RUBBER
15118-SK2-00
|
$8.37 | ||
| 4 |
PLUG, OIL
15163-NAF-00
|
$2.30 | ||
| 5 |
BREATHER
15171-NAF-00
|
$2.30 | ||
| 6 |
CRANKCASE, RIGHT
15211-YAF-00
|
$69.23 | ||
| 7 |
GASKET, STATOR
15221-NAF-01
|
$2.78 | ||
| 8 |
HOLDER
15228-NAF-00
|
$2.79 | ||
| 9 |
COVER, GEARBOX
15311-YAN-00
|
$27.61 | ||
| 10 |
GASKET, CRANKCASE COVER
15351-YAN-01
|
$5.58 | ||
| 11 |
COVER, CRANKCASE
15411-SK2-00
|
$42.02 | ||
| 12 |
GASKET, CRANKCASE COVER
15481-YAN-01
|
$12.79 | ||
| 13 |
HOSE, BREATHER
90311-50070
|
$1.19 | ||
| 14 |
O-RING
93210-24140
|
$1.39 | ||
| 15 |
O-RING
93210-31080
|
$1.05 | ||
| 16 |
BEARING, RADIAL BALL
93320-082809Z
|
$11.35 | ||
| 17 |
PIN DOWEL 10*14
94410-10014
|
$1.39 | ||
| 18 |
PIN, DOWEL
94410-12016
|
$2.09 | ||
| 19 |
SCREW, PAN HEAD
96310-06012-C
|
$0.70 | ||
| 20 |
SCREW, PAN HEAD 6*20
96310-06020-B
|
$0.70 |
