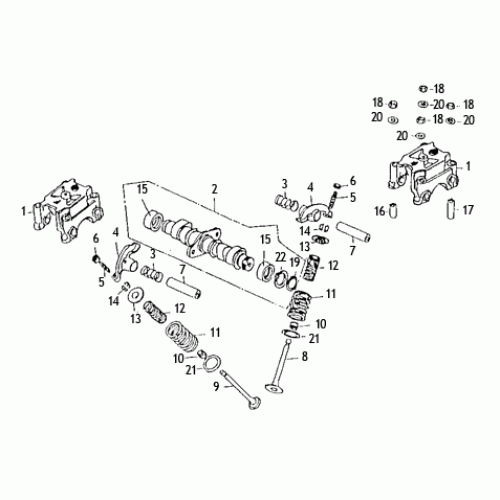

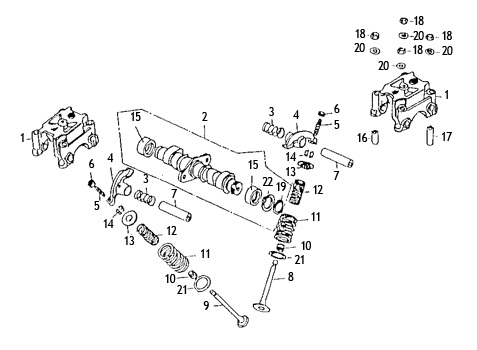

Valve (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
HOLDER, CAMSHAFT
11131-CBT-00
|
$42.69 | ||
| 2 |
CAMSHAFT COMP
14110-CBT-00
|
$77.88 | ||
| 3 |
SETTING SPRING, ROCKER ARM
14150-CBT-00
|
$2.09 | ||
| 4 |
ARM, VALVE ROCKER
14431-CBT-00
|
$27.89 | ||
| 5 |
SCREW, TAPPET ADJUSTING
14436-CBT-00
|
$4.18 | ||
| 6 |
NUT, TAPPET ADJUSTING
14437-CBT-00
|
$1.33 | ||
| 7 |
ROCKER ARM
14450-CBT-00
|
$5.58 | ||
| 8 |
VALVE, IN
14711-CBT-00
|
$20.99 | ||
| 9 |
VALVE, EX
14721-CBT-00
|
$26.50 | ||
| 10 |
SEAL, VALVE STEM
14731-CBT-00
|
$5.58 | ||
| 11 |
SEAL, VALVE OUTER
14751-CBT-00
|
$4.17 | ||
| 12 |
SEAL, VALVE INNER
14761-CBT-00
|
$3.49 | ||
| 13 |
RETAINER, VALVE SPRING
14771-CBT-00
|
$4.17 | ||
| 14 |
COTTER, VALVE
14781-CBT-00
|
$2.44 | ||
| 15 |
SHEATH, CAMSHAFT
93510-202813
|
$10.46 | ||
| 16 |
PIN, DOWEL 10*16
94410-10016
|
$1.39 | ||
| 17 |
PIN, DOWEL 10*28
94410-10028
|
$1.74 | ||
| 18 |
BOLT, HEXAGON
95201-081307-B
|
$0.68 | ||
| 19 |
CIRCLIP 20 MM
97010-20010-K
|
$0.70 | ||
| 20 |
WASHER, COPPER 8*5*18*2.2
97201-081822-B
|
$0.56 |
