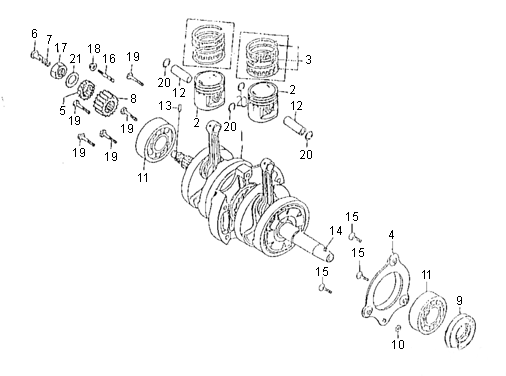

Crankshaft Piston (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CRANKSHAFT COMP
11400-CBT-00
|
$329.65 | ||
| 2 |
PISTON
11631-CBT-00
|
$38.69 | ||
| 3 |
RING SET, PISTON
11636-CBT-00
|
$36.69 | ||
| 4 |
OIL PLATE, BREATHER
13136-CBT-00
|
$13.93 | ||
| 5 |
OIL PUMP DRIVING WHEEL 20T
13178-CBT-00
|
$13.93 | ||
| 6 |
THROUGH OIL
13321-CBT-00
|
$6.93 | ||
| 7 |
SPRING, OIL THROUGH
13324-CBT-00
|
$1.39 | ||
| 8 |
GEAR, PRIMARY DRIVE 19T
25641-CBT-00
|
$38.69 | ||
| 9 |
OIL SEAL TC 35*52*7
93110-35527
|
$10.67 | ||
| 10 |
O-RING 3*6
93210-30060
|
$2.65 | ||
| 11 |
BEARING, RADIAL BALL 6305
93320-256217
|
$23.71 | ||
| 12 |
PIN, PISTON
93510-101541
|
$5.58 | ||
| 13 |
PIN, DOWEL 2*13.8
94510-20014
|
$1.05 | ||
| 14 |
PIN, DOWEL 4*3.7
94510-40004
|
$1.19 | ||
| 15 |
SCREW, PAN HEAD 6*16
94712-06016-B
|
$1.19 | ||
| 16 |
BOLT, ALIEN DIAMETER M7/M6*33
94717-06033-K
|
$1.79 | ||
| 17 |
NUT, HEXAGON
95201-162210-C
|
$2.78 | ||
| 18 |
NUT, FLANGE
95401-061006-C
|
$0.68 | ||
| 19 |
BOLT, FLANGE 8*32
96416-08032-K
|
$2.37 | ||
| 20 |
CIRCLIP, PISTON PIN 15MM
97050-10017
|
$1.19 |
