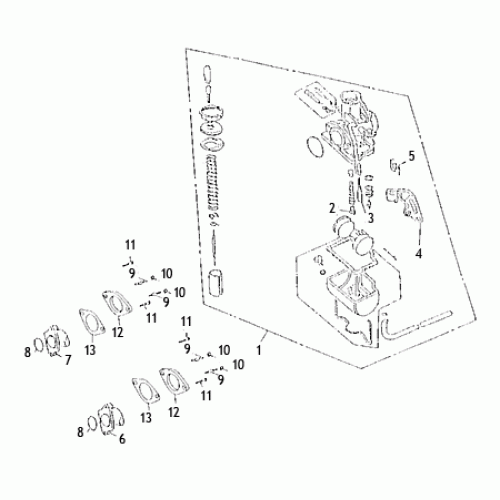

Carburetor (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 0 |
Insulator Carb Comp
13555-CBT-00
|
$51.98 | ||
| 0 |
Manifold Intake
13555-CBW-00
|
$51.98 | ||
| 1 |
CARBURETOR ASS'Y
13201-RAM-01
|
|||
| 2 |
JET, MAIN #102
13240-RAM-01
|
$11.16 | ||
| 3 |
JET, SLOW #35
13242-RAM-00
|
$11.74 | ||
| 4 |
HOLDER, CHOKE CABLE
13276-RAM-00
|
$4.17 | ||
| 5 |
SPRING, TORSION
13278-RAM-00
|
$4.17 | ||
| 6 |
INSULATOR, CARB COMP
13555-QUA-00
|
$26.50 | ||
| 7 |
INSULATOR, CARB COMP R
13565-CBT-00
|
$20.92 | ||
| 8 |
O-RING 2.4*26.2
93210-24262
|
$1.39 | ||
| 9 |
BOLT, STUD 6*28
94717-06028-B
|
$1.39 | ||
| 10 |
NUT, FLANGE
95401-061006-B
|
$0.85 | ||
| 11 |
SCREW, PAN HEAD 6*20
96310-06020-B
|
$0.70 | ||
| 12 |
INSULATOR CARBURETOR
13620-CBT-00
|
$6.97 | ||
| 13 |
CARB, INSULATOR GASKET
13621-CBT-00
|
$2.85 |
