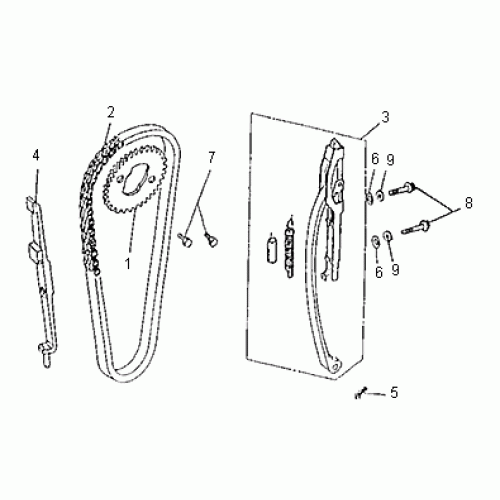

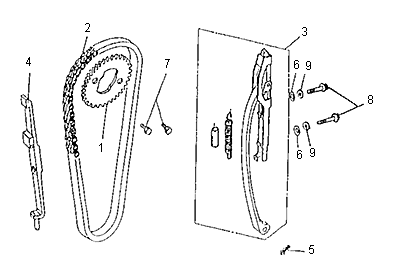

Cam Chain Tensioner (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
SPROCKET, CAMSHAFT
14111-CBT-00
|
$16.74 | ||
| 2 |
CHAIN, CAM
14501-CBT-00
|
$46.69 | ||
| 3 |
TENSIONER, CAM CHAIN
14510-CBT-00
|
$38.69 | ||
| 4 |
GUIDE COMP, CAM CHAIN
14560-CBT-00
|
$34.87 | ||
| 5 |
COTTER, PIN
90230-12008
|
$0.35 | ||
| 6 |
O-RING 1.9*5.8
93210-19058
|
$1.39 | ||
| 7 |
BOLT, HEXAGON 7*14
94706-07014-K
|
$2.79 | ||
| 8 |
BOLT, FLANGE
96414-06025-B
|
$1.05 | ||
| 9 |
WASHER, COPPER 6.2*13*1.2
97230-061312
|
$1.26 |
