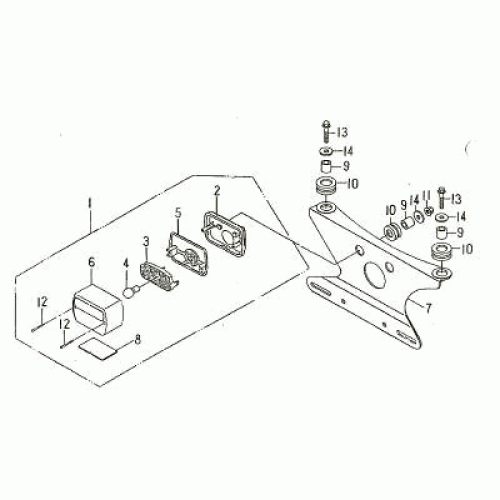

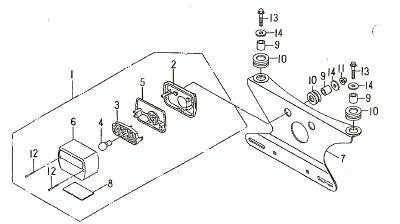

TAIL LIGHT (Kasea Skyhawk 150/170 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
TAIL LIGHT ASS'Y
55700-CHP-00
|
$40.82 | ||
| 2 |
STAND, TAILLIGHT
55701-CHP-00
|
$10.46 | ||
| 3 |
BULB STAND, TAIL LIGHT
55713-PAF-00
|
$6.97 | ||
| 4 |
BULB , TAIL LIGHT
55714-PAF-00
|
|||
| 5 |
FIXING WASHER
55715-PAF-00
|
$11.16 | ||
| 6 |
LENS, TAIL LIGHT
55721-PAF-00
|
$15.06 | ||
| 7 |
HOLDER, TAIL LIGHT
55726-RAM-00
|
$15.06 | ||
| 8 |
LENS, LICENSE LIGHT
55743-PAF-00
|
$2.78 | ||
| 9 |
COLLAR
93510-061010
|
$1.45 | ||
| 10 |
GROMMET
93580-102212
|
$3.30 | ||
| 11 |
NUT, FLANGE
95401-061006-
|
$1.19 | ||
| 12 |
SCREW, TAPPING
96112-43818-
|
$0.35 | ||
| 13 |
BOLT, FLANGE
96414-06020-
|
$1.39 | ||
| 14 |
WASHER, PLATE
97201-061820-
|
$0.56 |
