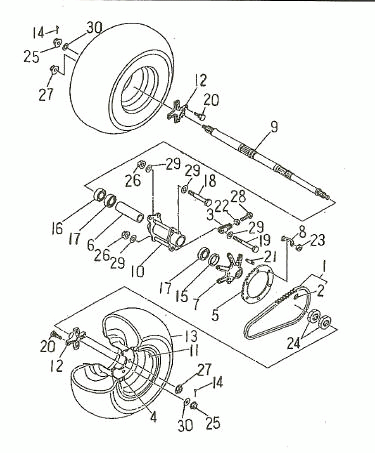

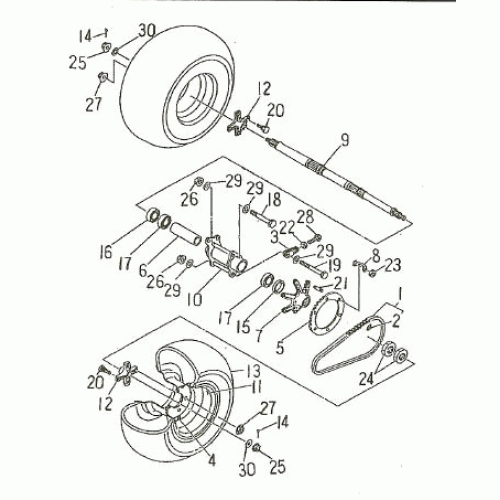

REAR WHEEL (Kasea Skyhawk 150/170 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CHAIN 520H*92L
25741-RAM-01
|
$38.42 | ||
| 2 |
JOINT, CHAIN
25742-RAM-00
|
$6.82 | ||
| 3 |
ADJUSTER, CHAIN
32120-RAM-00
|
$11.14 | ||
| 4 |
VALVE, RIM
42570-RAM-00
|
$3.49 | ||
| 5 |
SPROCKET, DRIVEN 40T
42812-RAM-00
|
$34.82 | ||
| 6 |
SPACER, BEARING
42815-RAM-00
|
$5.58 | ||
| 7 |
COLLAR, SPROCKET AXLE
42821-RAM-00
|
$57.74 | ||
| 8 |
WASHER, LOCK
42823-RAM-00
|
$1.05 | ||
| 9 |
AXLE, WHEEL
42835-RAM-00
|
|||
| 10 |
HUB, REAR
42881-RAM-00
|
$89.17 | ||
| 11 |
WHEEL, REAR 8*8.0AT
42882-RAM-00
|
$56.60 | ||
| 12 |
COLLAR, WHEEL
42885-RAM-00
|
$42.02 | ||
| 13 |
Rear Tire AT 21x10-8
42890-RAM-00
|
|||
| 14 |
PIN, COTTER 2.9*25
90240-29025-B
|
$0.35 | ||
| 15 |
OIL SEAL 42*62*8
93110-42628
|
$11.99 | ||
| 16 |
OIL SEAL 44*62*8
93110-44628
|
$11.30 | ||
| 17 |
BEARING, RSDIAL BALL 6007RS
93320-356214
|
$22.59 | ||
| 18 |
BOLT
94610-10174-B
|
$4.18 | ||
| 19 |
BOLT
94610-10178-B
|
$4.88 | ||
| 20 |
BOLT, RIBBED NECK
94710-10032-C
|
$2.79 |
