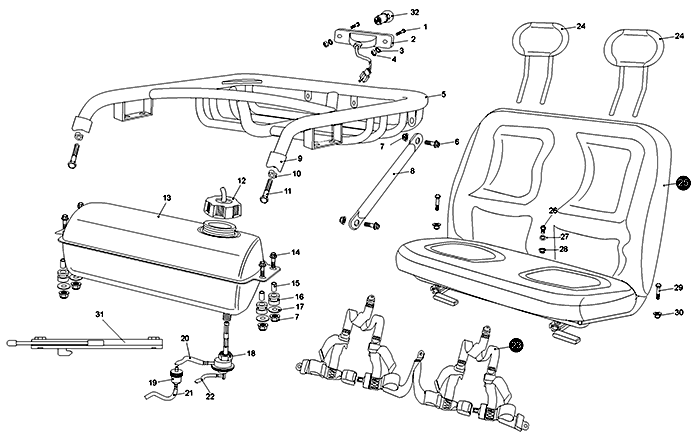

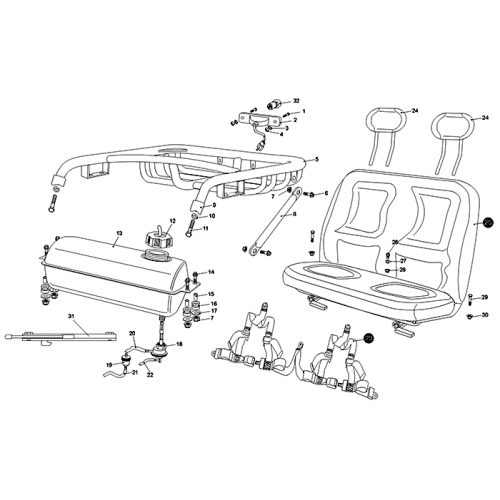

Rear Cargo Rack | Seat | Belt (Kasea LM150IIR 2003)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Screw. Pan. M5X20
9.600.520
|
|||
| 2 |
Kasea LM150IIR Tail Light Assembly
6.000.010
|
|||
| 3 |
Washer Lock D5
9.400.005
|
|||
| 4 |
Nut, M5
9.200.005
|
|||
| 5 |
Carrier Comp., Rear
2.000.001
|
|||
| 6 |
Bolt-Washer M8X1.25X20
9.108.020
|
|||
| 8 |
Supporter. Rear Cargo Rack
8.080.029
|
|||
| 9 |
Bush, (M32) Brush Guard Bar
7.010.016
|
$17.57 | ||
| 10 |
R-Washer
8.010.047
|
|||
| 11 |
Bolt-Washer M8X1.25X55
9.108.055
|
|||
| 12 |
Cap Comp. Fuel Filler
6.000.053
|
|||
| 13 |
Tank, Comp. Fuel
4.000.011
|
|||
| 14 |
Bolt-Washer M8X1.25X25
9.108.025
|
$1.33 | ||
| 15 |
Collar, Inner
8.010.034
|
$1.05 | ||
| 16 |
Rubber Ring
7.020.005
|
|||
| 17 |
Flat Washer 14
9.300.008
|
|||
| 18 |
Cock, Fuel Assy.
6.000.046
|
$20.08 | ||
| 19 |
Filter
6.000.056
|
$5.58 | ||
| 20 |
Tube Comp. Fuel. #1
7.020.021
|
|||
| 21 |
Pad Set, Rr, Brake
7.020.022
|
