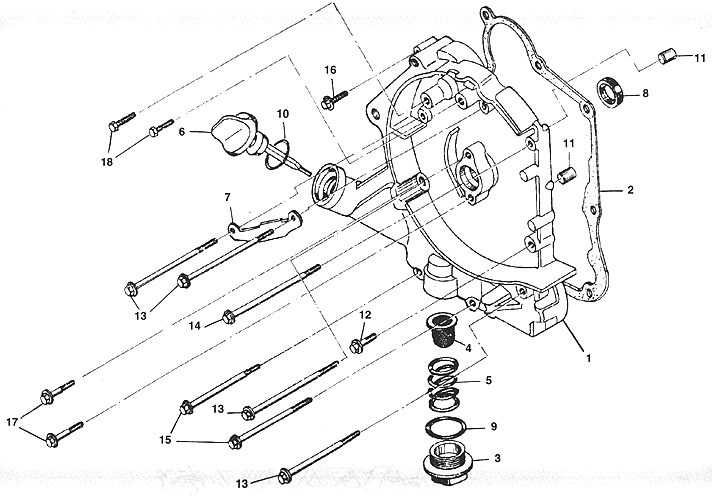

Crankcase Assembly (1) (Kasea LM150IIR 2000)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover R Crankcase Comp.
M150-1003101
|
$64.53 | ||
| 2 |
Crankcase Cover, Gasket
M150-1003013
|
$8.37 | ||
| 3 |
Cap Tappet Adjusting Hole
M150-1003104
|
$5.58 | ||
| 4 |
Screen Oil Filting
M150-1003120
|
$2.79 | ||
| 5 |
Sring Oil Filting Screen
M150-1003102
|
$4.11 | ||
| 6 |
Gauge Oil Level
M150-1003105
|
$4.18 | ||
| 7 |
Clamper Ac Generator Cord
M150-1003006
|
$1.39 | ||
| 8 |
Oil Seal 19.8X30X5
M150-1003110
|
$4.18 | ||
| 9 |
O-Ring 30.8X3
M150-1003103
|
$1.95 | ||
| 10 |
O-Ring 18X3
M150-1003307
|
$1.26 | ||
| 11 |
Bolt Flange M6X14
M150-1003005
|
$1.12 | ||
| 12 |
Pin Brake Shoe Anchor
M150-1003015
|
$6.28 | ||
| 13 |
Bolt Flange M6X95
M150-1003012
|
$2.79 | ||
| 14 |
Bolt Flange M6X100
M150-1003007
|
$3.49 | ||
| 15 |
Bolt Flange M6X110
M150-1003008
|
$3.77 | ||
| 16 |
Bolt Flange M6X40
M150-1003034
|
$1.05 | ||
| 17 |
Bolt Flange M6X20
M150-1003106
|
$0.92 | ||
| 18 |
Bolt Hex M5X12-Zn.D
92101-05012-OH
|
$1.05 |
