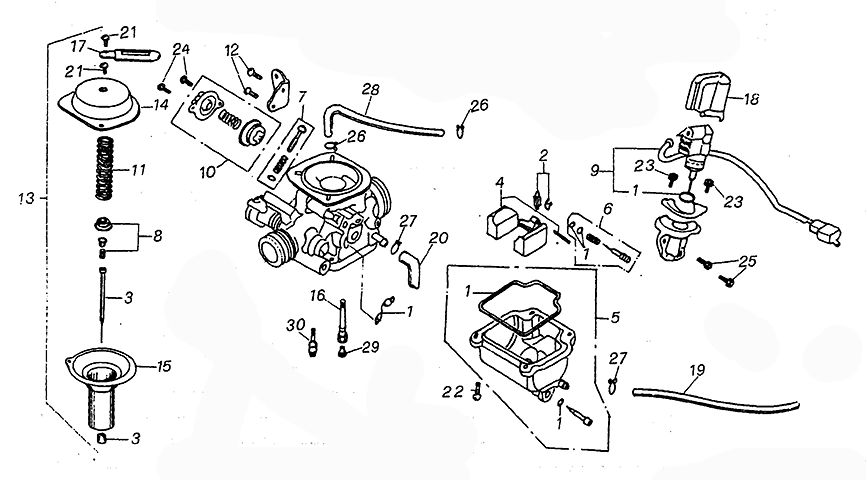

Carburetor (Kasea Adventure Buggy 125)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Gasket Set A
16010-KAT-901
|
|||
| 2 |
Valve Comp Float
16155-KAT-902
|
|||
| 3 |
Needle Set. Jet
16012-KAT-903
|
|||
| 4 |
Float Set
16013-KAT-904
|
|||
| 5 |
Chamber Set Float
16015-KAT-905
|
|||
| 6 |
Screw Set A
16016-KAT-906
|
|||
| 7 |
Screw Set B
16028-KAT-907
|
|||
| 8 |
Plate Set Valve
16037-KAT-908
|
|||
| 9 |
Bystarter Assy Auto
16046-KAT-909
|
|||
| 10 |
Valve Set. Air Cut
16048-KAT-910
|
|||
| 11 |
Spring. Compression Coil
16050-KAT-911
|
|||
| 12 |
Screw. Pan M5X12
16080-KJ9-003
|
|||
| 13 |
125/150cc Carburetor Assy.
16100-KAT-913
|
$80.00 | ||
| 14 |
Top
16107-KAT-914
|
|||
| 15 |
Piston Comp Vacuum
16111-KAT-915
|
|||
| 16 |
Holder. Needle Jet
16165-KAT-916
|
|||
| 17 |
Binder
16179-KAB-670
|
|||
| 18 |
Cap Holder
16190-GJ2-004
|
|||
| 19 |
Tube
95005-45270-50
|
|||
| 20 |
Tube
16199-GT8-600
|
