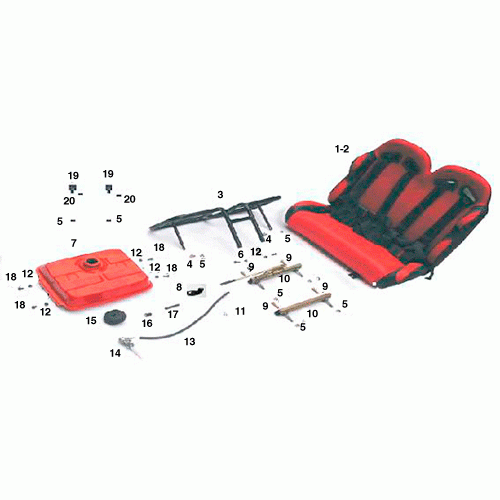

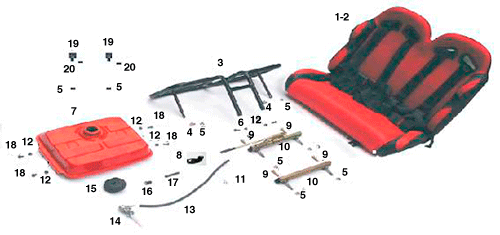

Seat Assy (Dazon Raider 90 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Seat Assy. DB Style(DAZON)
7720A-BDD1-0000
|
|||
| 2 |
Safety Belt for Double-seat
77220-BDD0-0010
|
|||
| 3 |
Carrier Assy., Rear
82101-BDD0-0000
|
$95.04 | ||
| 4 |
Bolt, Flange
95710-08016-1B
|
$1.05 | ||
| 5 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 6 |
Bolt, Flange
95710-06030-0C
|
$0.42 | ||
| 7 |
Tank Comp., Fuel
17500-BDD0-0000
|
|||
| 8 |
Brace, Air Cleaner
17221-BDD0-0000
|
$9.76 | ||
| 9 |
Bolt, Flange M8*16
90140-08016-0B
|
$1.20 | ||
| 10 |
Rail Set, Seat
77250-BDD0-0000
|
$65.71 | ||
| 11 |
Clip 10
95002-ADA0-0000
|
|||
| 12 |
Lock Nut,Flange
90210-06B01-0C
|
$0.70 | ||
| 13 |
Hose, Fuel
17680-BDD0-0000
|
|||
| 14 |
Switch Comp., Fuel
16950-BDD0-0000
|
|||
| 15 |
Cap, Fuel Tank Comp.
17620-BCC0-0002
|
|||
| 16 |
Valve,Check
17626-BCA0-0000
|
|||
| 17 |
Tube, Guide
17685-BCA0-0001
|
$0.84 | ||
| 18 |
Bolt, Flange
95710-06016-0C
|
$0.70 | ||
| 19 |
Rubber Block,Rear Carrier Assy.
53205-BDB0-0000
|
$11.30 | ||
| 20 |
R-washer
50199-BCA0-0000-0C
|
