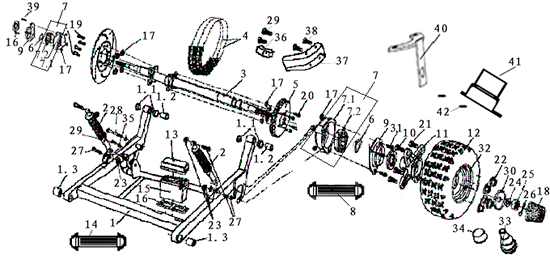

Rear Wheel Assembly (Dazon Raider 250D 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Swing Arm Comp., Bottom Rear
5212A-BFD0-0020
|
$228.06 | ||
| 1.1 |
Bush, Left/Right Side
52148-BCA0-0000
|
$2.79 | ||
| 1.2 |
Spacer, Center
52149-BCA0-0000
|
$6.97 | ||
| 1.3 |
Bush, Rubber
52147-BCA0-0000
|
|||
| 2-1 |
Shock Absorber Assy., Rear
52400-BFD0-0000-B4
|
$104.43 | ||
| 2-2 |
Shock Absorber Assy., Rear
52400-BFD0-0000-B5
|
$104.43 | ||
| 3 |
Axle Comp., Rear Wheel
41000-BFD0-0000
|
$285.37 | ||
| 4 |
Chain, Drive
40530-BCA0-E000
|
|||
| 5 |
Sprocket, Rear Axle
41200-BCA0-0000
|
$30.00 | ||
| 6 |
Rear axle bush
42704-BDE0-0000
|
$24.48 | ||
| 7 |
Housing Comp., Rear Axle Bridge Assy
4270C-BCA0-0010
|
$46.82 | ||
| 7.1 |
Housing Comp., Rear Axle Bridge
42701-BCA0-0000
|
|||
| 7.2 |
Bearing
96100-60070-2RS
|
|||
| 8 |
Band, Battery
50329-BCA0-0000
|
|||
| 9 |
Cover, Rear Axle Bridge Housing
42702-BCA0-0000
|
$10.46 | ||
| 10 |
Seal, Oil
91204-BDE0-0010
|
$4.18 | ||
| 11 |
Wheel Hub, Rear
4260A-BCA0-0010
|
|||
| 12 |
Rear Tire 22x11-10
42710-BCA0-0000
|
|||
| 13 |
Cover, Battery
50320-BCA0-0010
|
|||
| 14 |
Band, Battery
50329-BDE0-0000
|
$3.61 |
