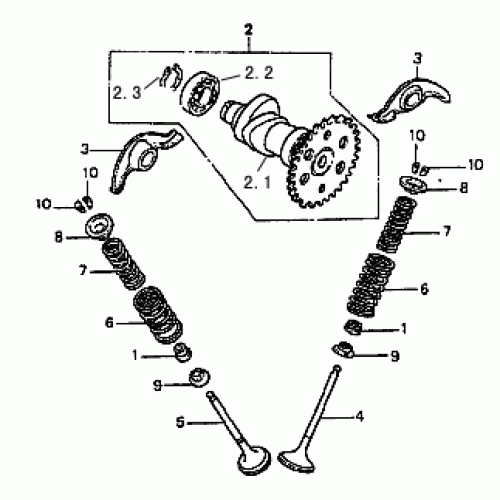

Camshaft/Valve (Dazon Raider 250 Engine 2006+)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Oil Seal, Air Valve
12209-CAA0-0000
|
|||
| 2 |
Camshaft Comp.
14100-SCC0-0000
|
$92.69 | ||
| 2.1 |
Camshaft Comp.
14110-SCC0-0000
|
|||
| 2.2 |
Bearing
96100-60020-N000
|
|||
| 2.3 |
Circlip
94510-15000-0E
|
|||
| 3 |
Arm, Valve Rocker
14431-SCC0-0000
|
|||
| 4 |
Valve In.
14711-SCC0-0000
|
$20.08 | ||
| 5 |
Valve Ex.
14721-SCC0-0000
|
|||
| 6 |
Spring, Valve Outer
14751-SCC0-0000
|
|||
| 7 |
Spring, Valve Inner
14761-SCC0-0000
|
|||
| 8 |
Retainer, Air Valve Spring
14771-SAA0-0000
|
|||
| 9 |
Seat, Valve Spring
14775-SCC0-0000
|
$2.79 | ||
| 10 |
Cotter, Air Valve
14782-SAA0-0000
|
