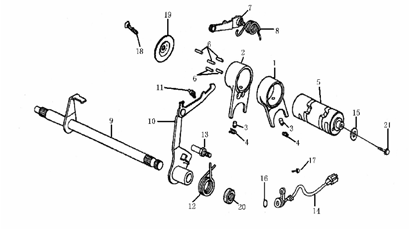

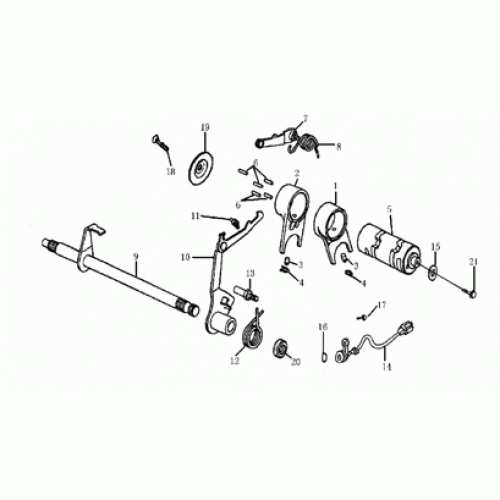

Gearshift Drum (Dazon Raider 90 2005 and Older)

Change Assembly

Gearshift Drum (Dazon Raider 90 2005 and Older)
# Product Code: Product Name Req'd Price:
1 24211-CDA1-0000 Fork 1, Gearshift Drum
2 24212-CDA1-0000 Fork 2, Gearshift Drum
3 24261-CDA1-0000 Pin, Guide
4 24263-CDA1-0000 Clip, Spring
5.1 24301-CDA1-0000 DRUM , GEARSHIFT $32.22 $24.17
5.2 24301-CDA2-0000 Drum, Gearshift $32.22 $24.17
6 24421-CDA1-0000 Pin, Fixing Plate
7 24430-CDA1-0000 Fixing Plate, Gearshift Drum $5.20 $3.90
8 24435-CDA1-0000 Spring, Fixing Plate $0.58 $0.43
9 24610-CDA1-0000 Spindle, Gearshift $25.99 $19.49
10 2463A-CDA1-0000 Arm, Gearshift $4.04 $3.03
11 24641-CDA1-0000 Spring, Gearshift Arm
12 24651-CDA1-0000 Return Spring, Gearshift Arm
13 24652-CDA1-0000 Bolt, Fixing $1.44 $1.08
14 35750-CDA1-0000 Contact, Neutral Display
17 96010-06014-0A Screw $0.46 $0.35
18 96010-06020-0A Screw $0.23 $0.17
19 24411-CDA1-0000 Sleeve, Gearshift Drum
20 91205-CDA1-0000 Seal, Oil $2.02 $1.52
21 93210-06016-0A Screw $0.46 $0.35
Showing 1 to 20 of 20 (1 Pages)
