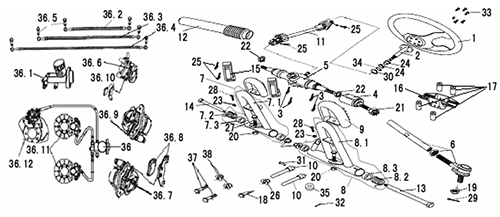

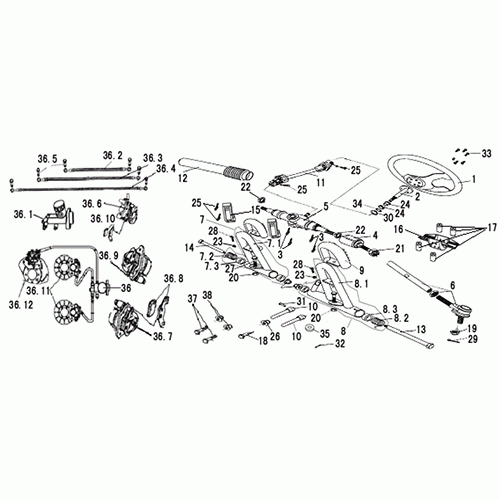

Steering Shaft Ass'y (Dazon Raider 250S 2006 and Earlier)

Change Assembly

Steering Shaft Ass'y (Dazon Raider 250S 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 53100-BDA0-0000 Steering Comp.
2 53200-BDC0-0000 Shaft, Steering
3 96050-08035-1B Bolt, Socket
4 53220-BDE0-0000 Ball Joint, Steering $29.11 $21.83
5 53210-BDA0-0000 Gear Assy., Steering DB Style(DAZON) $70.69 $53.01
6 5324A-BDE0-0011 Tie Rod, Right
7 5331A-BCA0-0002 Pedal Comp., Throttle $22.87 $17.15
7.1 53310-BCA0-0002 Pedal Comp., Throttle $14.55 $10.91
7.2 53394-BCA0-0000 Spring, Throttle Pedal
8 5332A-BCA0-0002 Pedal Comp., Brake $25.99 $19.49
8.1 53320-BCA0-0002 Pedal Comp., Brake $18.71 $14.03
8.2 53392-BCA0-0000 Spring, Brake Pedal $1.16 $0.87
8.3 53331-BCA0-0000 Collar, Pedal $4.50 $3.38
9 53350-BCA0-0000 Pad, Rubber
10 45536-BCA0-0010-0C Push Rod, Master $9.10 $6.82
11 53260-BDC0-0000 Shaft , Steering Knuckle
12 53250-BCA0-0000 Dust Cover , Ball Joint
13 53391-BCA0-0000-0C Bolt, Brake Pedal $9.82 $7.36
14 53393-BCA0-0000-0C Bolt, Throttle $6.93 $5.20
15 50103-BDA0-0000 Pressure Plate, Upper, Steering Gear $13.51 $10.14
Showing 1 to 20 of 53 (3 Pages)
