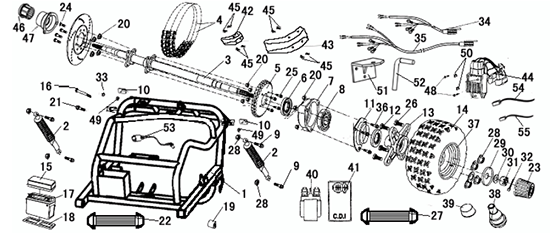

Rear Wheel Ass'y (Dazon Raider 250S 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Swing Arm Comp., Bottom Rear
5212A-BDC0-0010
|
|||
| 2 |
Shock Absorber Assy., Rear
52400-BDC0-0010
|
$104.43 | ||
| 3 |
Axle Comp., Rear Wheel
41000-BDC0-0010
|
|||
| 4 |
Chain,Drive
40530-BDE0-0000
|
|||
| 5 |
Sprocket, Rear Axle
41200-BCA0-0000
|
$30.00 | ||
| 6 |
Seal,Oil
91203-BDE0-0010
|
|||
| 7 |
Housing Comp., Rear Axle Bridge
42701-BCA0-0000
|
|||
| 8 |
Bearing
96100-60070-2RS
|
|||
| 9 |
Bolt, Flange M10*50
90140-10050-1B
|
$2.09 | ||
| 10 |
Reflector
33741-BCA0-E000
|
$5.43 | ||
| 11 |
Cover, Rear Axle Bridge Housing
42702-BCA0-0000
|
$10.46 | ||
| 12 |
Seal, Oil
91204-BDE0-0010
|
$4.18 | ||
| 13 |
Wheel Hub, Rear
4260A-BCA0-0010
|
|||
| 14.1 |
Rear Tire 22x11-10
42710-BCA0-0000
|
|||
| 14.2 |
Rear Tire 22x11-10
42710-BCB0-0000
|
|||
| 15 |
Cover, Battery
50320-BCA0-0010
|
|||
| 16 |
Bolt, Flange
95710-08098-1B
|
$2.79 | ||
| 17.1 |
Battery
31500-BDB0-0000-M1
|
|||
| 17.2 |
Battery
31500-BDB0-0000-M2
|
|||
| 18 |
Cushion, Battery
50328-BCA0-0000
|
$2.09 |
