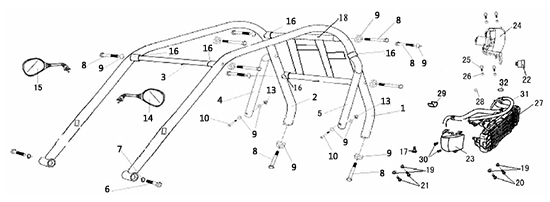

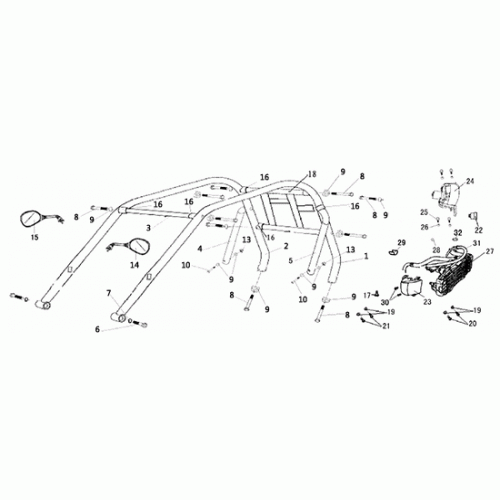

Brush Guard Bar (Dazon Raider 250S 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Brush Guard Bar, Long Left
50110-BDC0-E000
|
|||
| 2 |
Brush Guard Bar, Long Right
50120-BDC0-E000
|
|||
| 3 |
Brush Guard Bar, Center Front
50150-BCA0-0010
|
|||
| 4 |
Brush Guard Bar, Rear Left
50130-BCA0-0000
|
|||
| 5 |
Brush Guard Bar, Rear Right
50140-BCA0-0000
|
|||
| 6 |
Bolt, Socket
96050-12045-1B
|
$1.15 | ||
| 7 |
Washer, Spring
94120-12B01-0C
|
$0.21 | ||
| 8 |
Bolt, Flange
95710-08058-1B
|
$1.74 | ||
| 9 |
R-washer
50199-BCA0-0000-0C
|
|||
| 10 |
Bolt, Flange
95710-08050-1B
|
|||
| 11 |
Bolt, Flange
95710-05016-0C
|
|||
| 12 |
Lock Nut, Flange
90210-05B01-0C
|
|||
| 13 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 14 |
Rearview Mirror, Right
88110-TBA0-0000
|
|||
| 15 |
Rearview Mirror, Left
88120-TBA0-0000
|
|||
| 16 |
Bush, Brush Guard Bar
50129-BCA0-0000
|
|||
| 17 |
Bolt, Copper
90190-SDA0-0000
|
$2.11 | ||
| 18 |
Support, Radiator
50150-BDC0-0000
|
|||
| 19 |
Inner Collar, Fuel Tank
17519-BCA0-0000-0C
|
|||
| 20 |
Bolt, Flange
95710-06030-0C
|
$0.42 |
