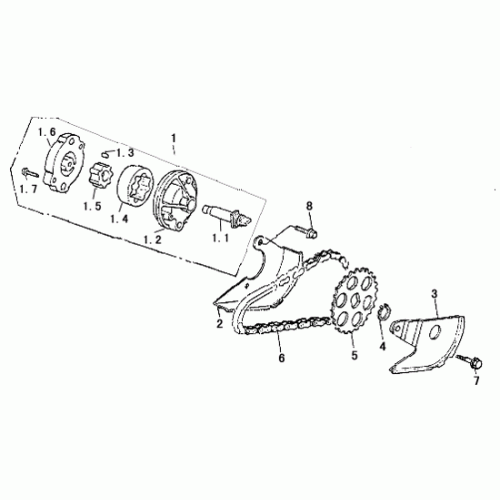

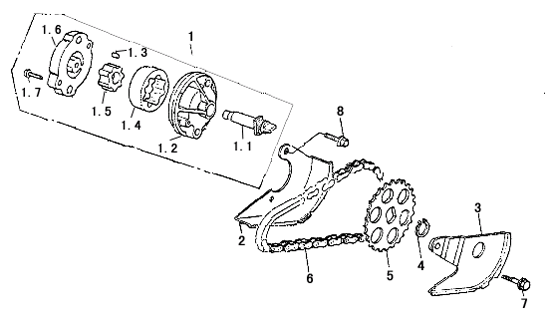

Oil Pump (Dazon Raider 250 Engine 2006+)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Pump Assy., Oil
15100-SBH0-0000
|
$36.02 | ||
| 1.1 |
Shaft, Oil Pump
15132-SCC0-0000
|
|||
| 1.2 |
Body, Oil Pump
15101-SCC0-0000
|
|||
| 1.3 |
Pin, Dowel
94310-04065
|
|||
| 1.4 |
Oil Pump Rotor, Outer
15332-SCC0-0000
|
|||
| 1.5 |
Oil Pump Rotor, Inner
15331-SCC0-0000
|
|||
| 1.6 |
Plate, Oil Pump
15116-SCC0-0000
|
|||
| 1.7 |
Screw, Panhead
93600-03010-0B
|
|||
| 2 |
Separator, Oil Pump,Lower
15732-SBH0-0000
|
$4.88 | ||
| 3 |
Separator, Oil Pump,Upper
15731-SBH0-0000
|
|||
| 4 |
Circlip
94510-10000-0E
|
$1.39 | ||
| 5 |
Dazon Go Kart Oil Sprocket Pump
15133-SBH0-0000
|
|||
| 6 |
Dazon Go Kart Oil Pump Chain
15141-SBH0-0000
|
|||
| 7 |
Bolt, Flange
96010-06012-0D
|
|||
| 8 |
Bolt, Flange
96010-06028-0D
|
$1.26 |
