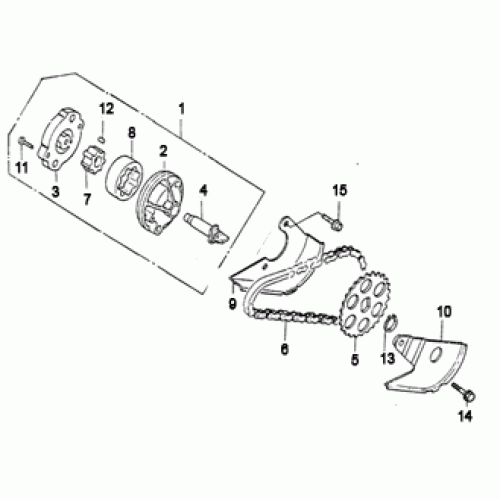

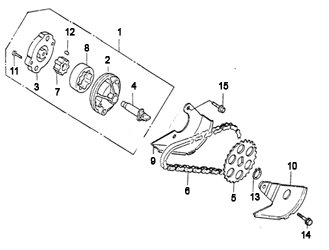

Oil Pump (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Pump Assy., Oil
15100-SBH0-0000
|
$36.02 | ||
| 2 |
Body, Oil Pump
15101-SBH0-0000
|
|||
| 3 |
Cover, Oil Pump
15116-SBH0-0000
|
|||
| 4 |
Shaft, Oil Pump
15132-SBH0-0000
|
$13.93 | ||
| 5 |
Dazon Go Kart Oil Sprocket Pump
15133-SBH0-0000
|
|||
| 6 |
Dazon Go Kart Oil Pump Chain
15141-SBH0-0000
|
|||
| 7 |
Inner Rotor, Oil Pump
15331-SBH0-0000
|
|||
| 8 |
Outer Rotor, Oil Pump
15332-SBH0-0000
|
|||
| 9 |
Separator, Oil Pump,Lower
15732-SBH0-0000
|
$4.88 | ||
| 10 |
Separator, Oil Pump,Upper
15731-SBH0-0000
|
|||
| 11 |
Screw 3*12
15333-SBH0-0000
|
|||
| 12 |
Pin, Dowel
94310-04065
|
|||
| 13 |
Circlip, External 10mm
94510-10000-OE
|
|||
| 14 |
Blot, Flange M6*12
96010-06032
|
|||
| 15 |
Bolt, Flange M6*28
96010-06028
|
