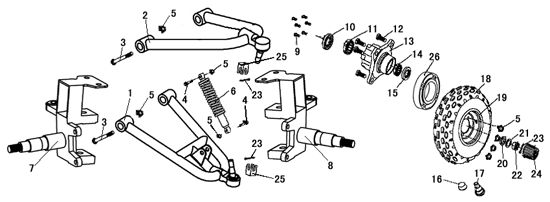

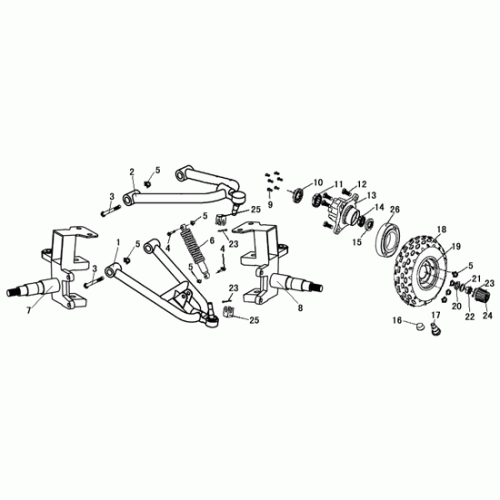

Front Wheel Ass'y (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Suspension Arm Comp., Lower
5120A-BDE0-0011
|
|||
| 2 |
Suspension Arm Comp., Upper
5110A-BDE0-0000
|
|||
| 3 |
Bolt,Flange
90140-10065-1B
|
|||
| 6 |
Shock Absorber Assy., Front
51400-BDC0-0001
|
|||
| 7 |
Strut, Left
50751-BDE0-0010
|
|||
| 8 |
Strut, Right
50752-BDE0-0010
|
|||
| 10 |
Seal,Oil
91201-BCA0-0001
|
$4.18 | ||
| 11 |
Bearing
96100-60040-2RS
|
$12.55 | ||
| 12 |
Bolt,Tire M10
44901-BCA0-0000-0C
|
|||
| 13 |
Hub, Front Wheel
4460A-BDE0-0001
|
$69.23 | ||
| 14 |
Bearing
96100-60050-2RS
|
$18.83 | ||
| 25 |
Nut, Castle
90293-BDA0-0000-0B
|
