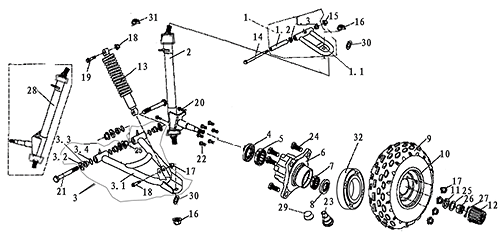

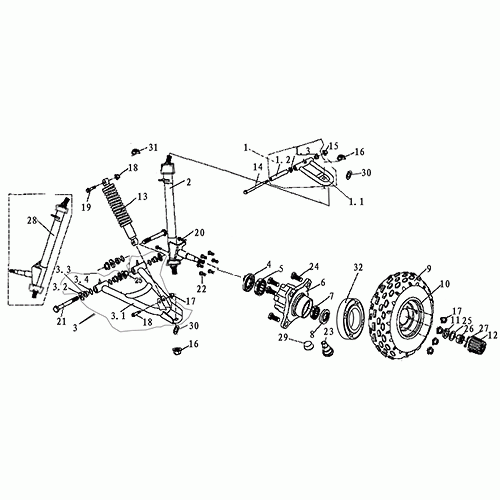

Suspension (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
upper suspension arm assy.
5110A-BCA0-0020-B11
|
|||
| 1.1 |
Suspension Arm Subassy., Upper
51100-BCA0-0020
|
|||
| 1.2 |
Spacer, Center
51109-BCA0-0000
|
|||
| 1.3 |
Bush, Lower Suspension Arm
51108-BCA0-0000
|
|||
| 2 |
knuckle support, left
51500-BCA0-0021
|
|||
| 3 |
down suspension arm assy.
5120A-BCB0-0010-B11
|
|||
| 3.1 |
Suspension Arm Subassy., Lower
5120A-BCB0-0010
|
|||
| 3.2 |
Cap, Dust
51209-BCA0-0000
|
|||
| 3.3 |
Bush, Lower Suspension Arm
51208-BCA0-0000
|
|||
| 3.4 |
Rubber, Fuel Tank
51207-BCA0-0000
|
|||
| 4 |
Seal, Dust 25x47-7
91201-BCA0-0000
|
|||
| 5 |
bearing 6204 2rs
96100-62040-2RS
|
$11.30 | ||
| 6 |
Hub,Front Wheel
4460A-BCA0-0000
|
$57.49 | ||
| 7 |
bearing 6203 2rs
96100-62030-2RS
|
$9.07 | ||
| 8 |
Seal, Oil
91202-BCA0-0000
|
$2.65 | ||
| 9-2 |
Front Tire 21x7-10
44710-BCB0-0000
|
$92.69 | ||
| 9-1 |
Front Tire 21x7-10
44710-BDA0-0000
|
$80.96 | ||
| 10-4 |
Aluminum Rim, Front
44705-BCA3-0000
|
$113.46 | ||
| 10-3 |
rim ,front 10-6
44705-BDA1-0000-0D
|
$104.43 | ||
| 10-1 |
Rim ,Front 10-6 (Black )
44705-BDA1-0000-B1
|
