Right Crankcase Cover (Dazon Raider 150 2006 and Earlier)

Change Assembly

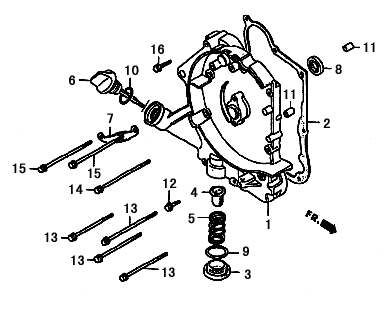

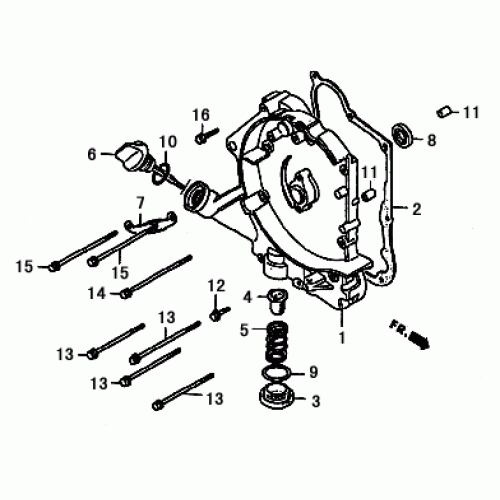

Right Crankcase Cover (Dazon Raider 150 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 11331-SAA0-0000 Cover, R. Crankcase $45.74
2 11394-SAA0-E000 Gasket, R. Crankcase Cover
3 12361-SBA0-0000 Cover, Oil Filter Scrren $2.31
4 15421-SBA0-0000 Screen, Oil Filter $1.16
5 15426-SBA0-0000 Spring, Oil Filter Screen
6 15651-SBA0-0000 Gauge, Oil Level $2.31
7 32961-SAA0-0000 Clamp, A.C.Generator Cord $1.16
8 91203-SBA0-0000 Oil Seal 19.8x30x5 $8.78
9 91301-CAA0-0000 O-Ring $0.58
10 91305-CAA0-0000 O-Ring $0.29
11 94310-08140 Pin, Dowel $0.40
12 96010-06032-0B Bolt, Flange $0.87
13 96010-06095-0B Bolt, Flange 6x95 $1.16
14 96010-06100-0B Bolt, Flange 6x100 $1.44
15 96010-06110-0B Bolt, Flange 6x110 $1.50
16 96010-06040-0B Bolt, Flange 6x40 $0.87
Showing 1 to 16 of 16 (1 Pages)
