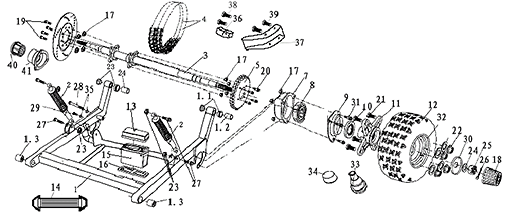

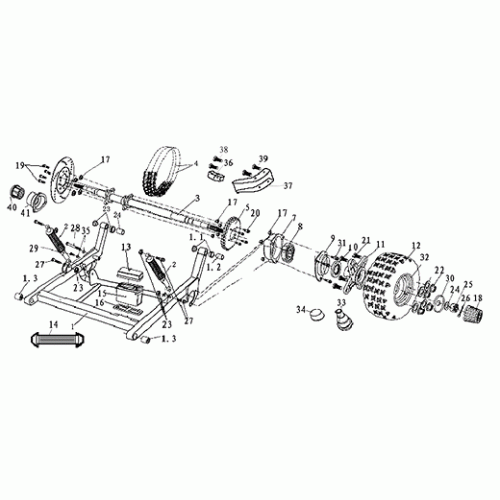

Rear Wheel (Dazon Raider 150 2006 and Earlier)

Change Assembly

Rear Wheel (Dazon Raider 150 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 5212A-BCA0-0020 rear swing arm comp. $181.91
1.1 52148-BCA0-0000 Bush, Left/Right Side $2.31
1.2 52149-BCA0-0000 Spacer, Center $5.78
1.3 52147-BCA0-0000 Bush, Rubber
2-3 52400-BCA0-0002 absorber assy. rr. $61.33
2-1 52400-BCA0-0000 Shock Absorber $61.33
2-2 52400-BCA0-0001 Shock Absorber, Rear $61.33
3 41000-BCA0-0030 axle comp. rr. $199.00
4 40530-BCA0-0000 Drive Chain 10A
5 41200-BCA0-0000 Sprocket, Rear Axle $61.33
6 91203-BCA0-0000 Seal, Dust 34x50-7 $4.04
7 42701-BCA0-0000 Housing Comp., Rear Axle Bridge $22.87
8 96100-62060-2RS bearing 6206 2rs $14.03
9 42702-BCA0-0000 Cover, Rear Axle Bridge Housing $8.66
10 91204-BCA0-0000 Seal,Dust 28x42-7.3 $5.20
11 4260A-BCA0-0010 Wheel Hub, Rear $45.74
12-2 42710-BCB0-0000 tire, front 22x11-10 $79.00
12-1 42710-BCA0-0000 Tire, Rear
13 50320-BCA0-0010 Cover, Battery
14 50329-BCA0-0000 Band, Battery
Showing 1 to 20 of 50 (3 Pages)
