Oil Pump (Dazon Raider 150 2006 and Earlier)

Change Assembly

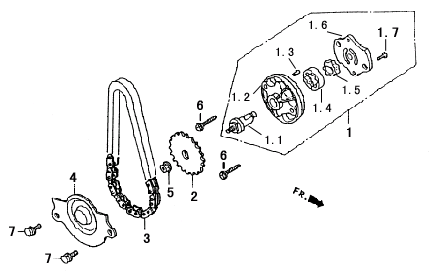

Oil Pump (Dazon Raider 150 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 15100-SAA0-0010 Pump Assy., Oil $19.75
1.1 15132-SAA0-0000 Shaft, Oil Pump
1.2 15101-SAA0-0010 Body, Oil Pump
1.3 94310-04065 Pin, Dowel
1.4 15332-SAA0-0010 Rotor, Oil Pump Outer
1.5 15331-SAA0-0010 Rotor, Oil Pump Inner
1.6 15116-SAA0-0000 Plate, Oil Pump
1.7 93600-03010-0B Screw, Panhead
2 15133-SAA0-0000 Sprocket, Oil Pump Driven $5.78
3 15141-SAA0-0000 Dazon Go Kart Oil Pump Chain
4 15711-SAA0-0000 Separator, Oil Pump $1.16
5 94050-06E01-0B Nut, Flange 6mm $0.58
6 96010-06025-0B Bolt, Flange 6x25 $0.58
7 96010-06012-0B Bolt, Flange
Showing 1 to 14 of 14 (1 Pages)
